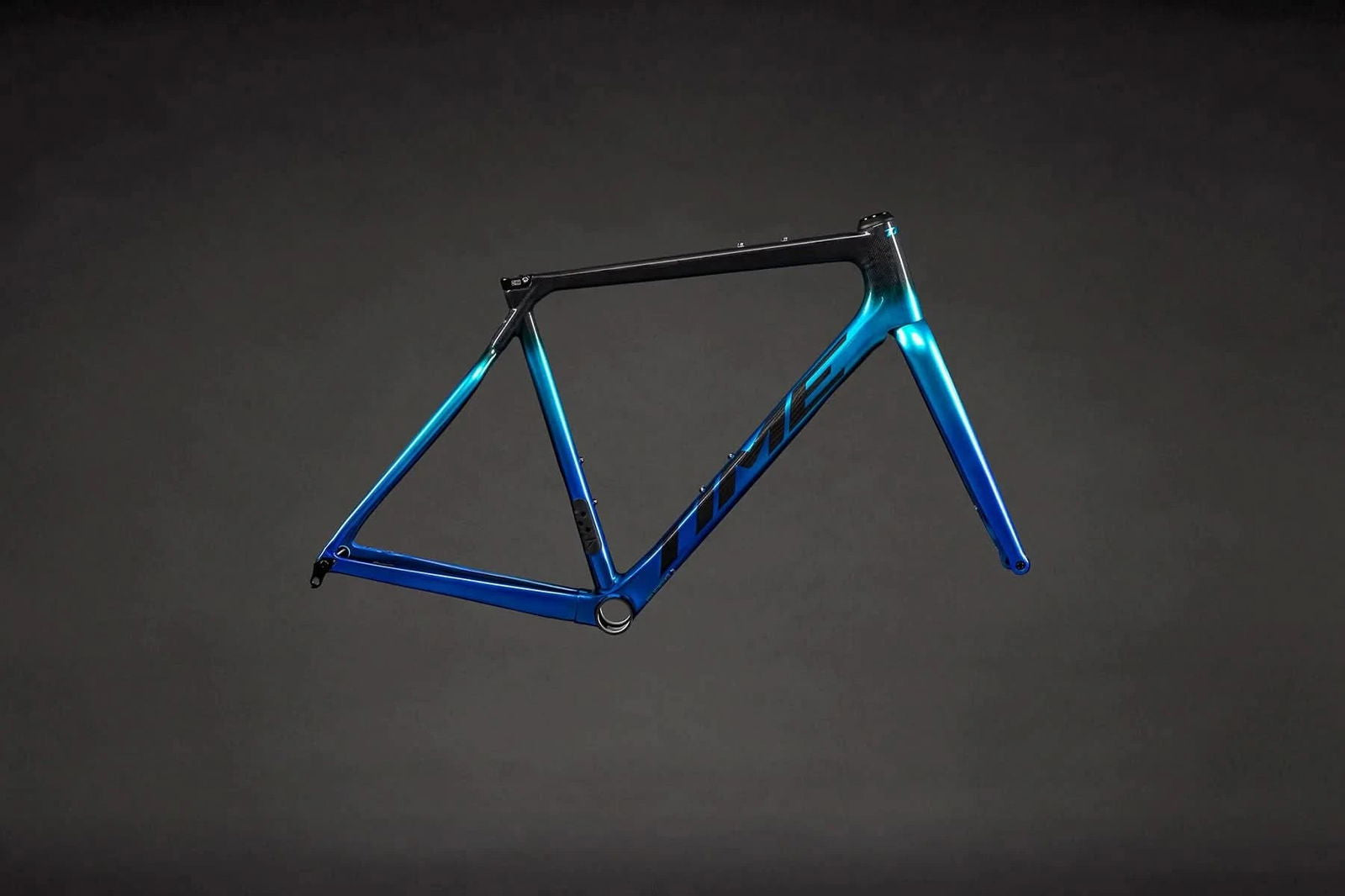

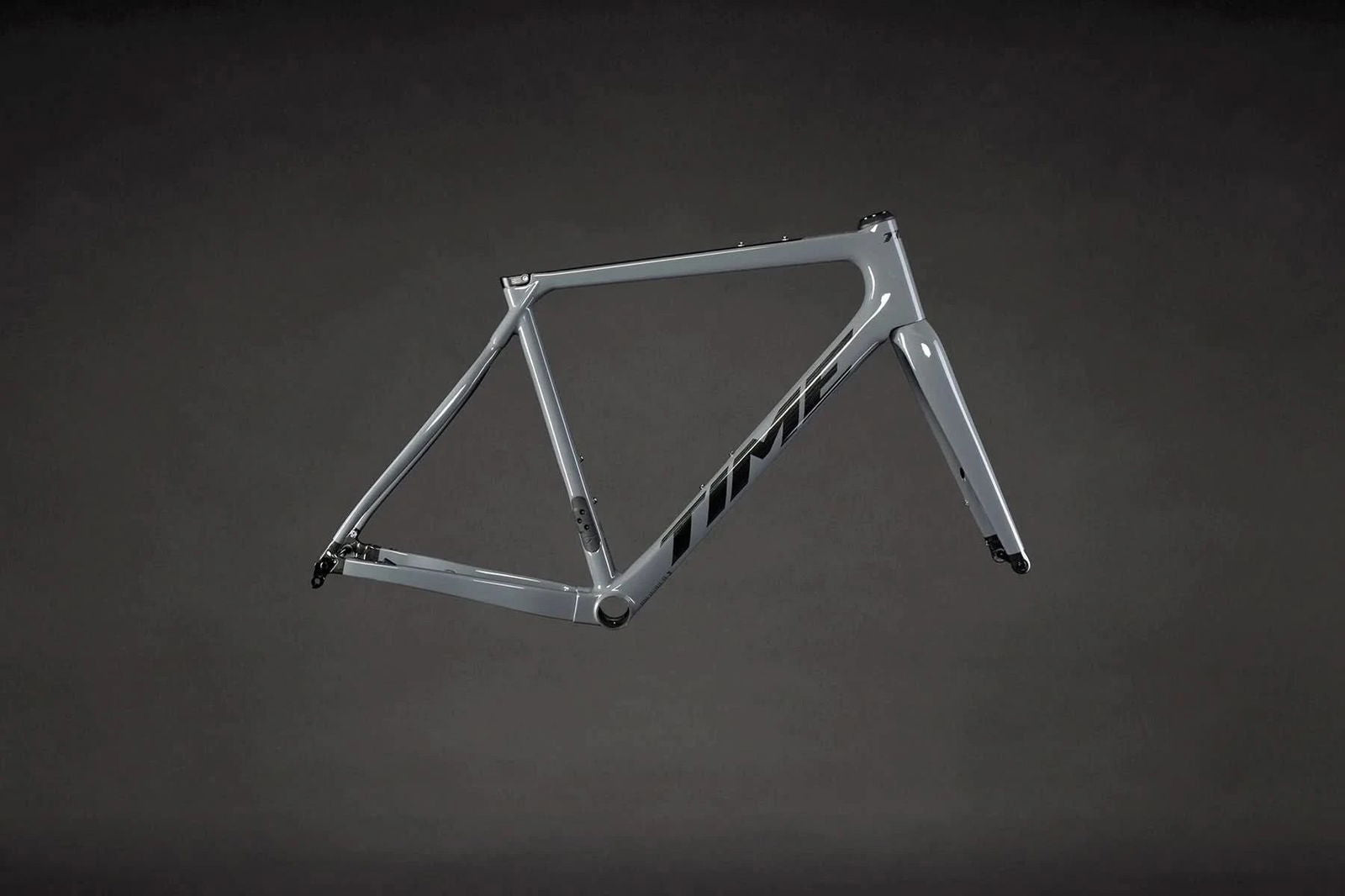

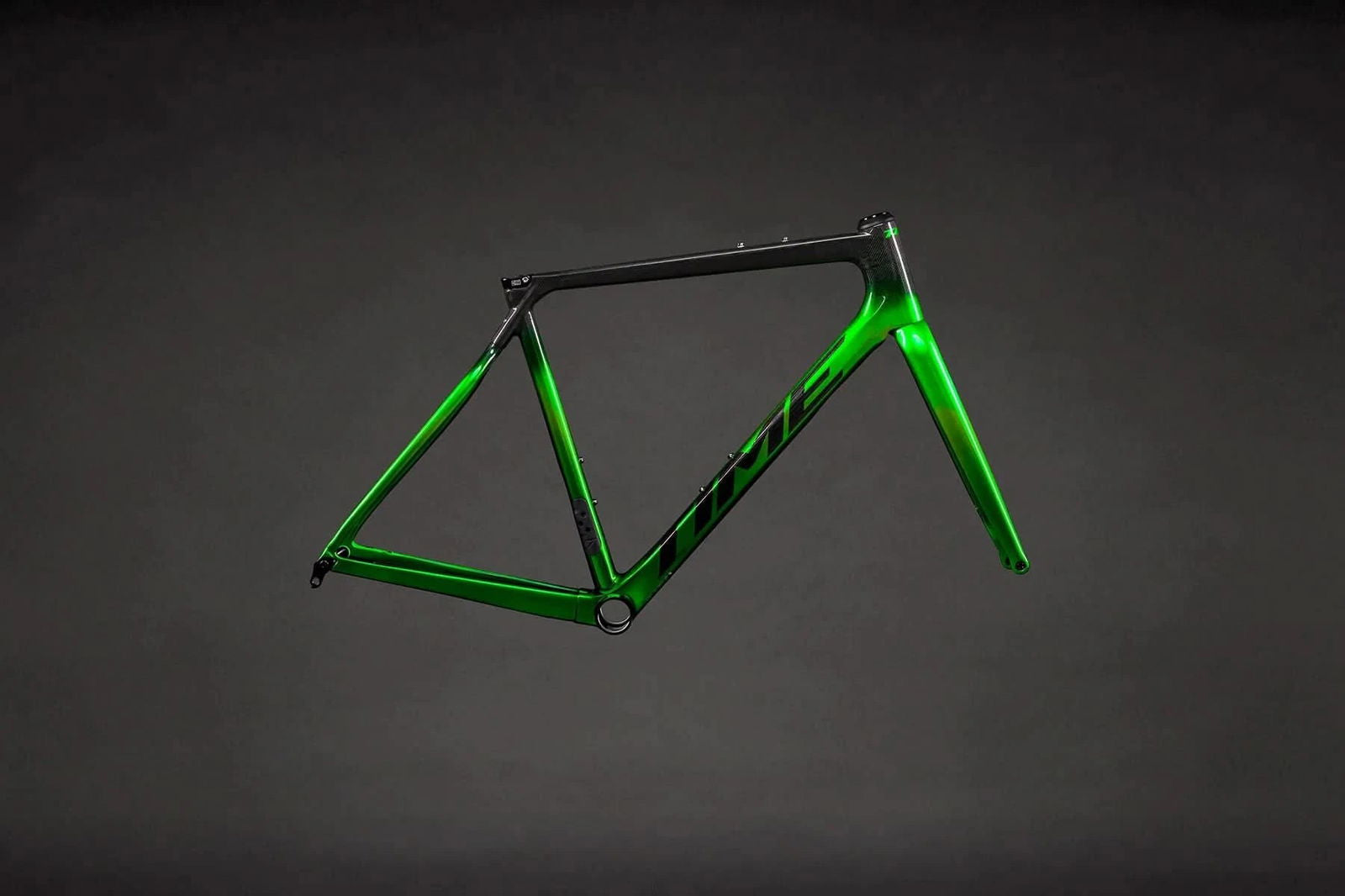

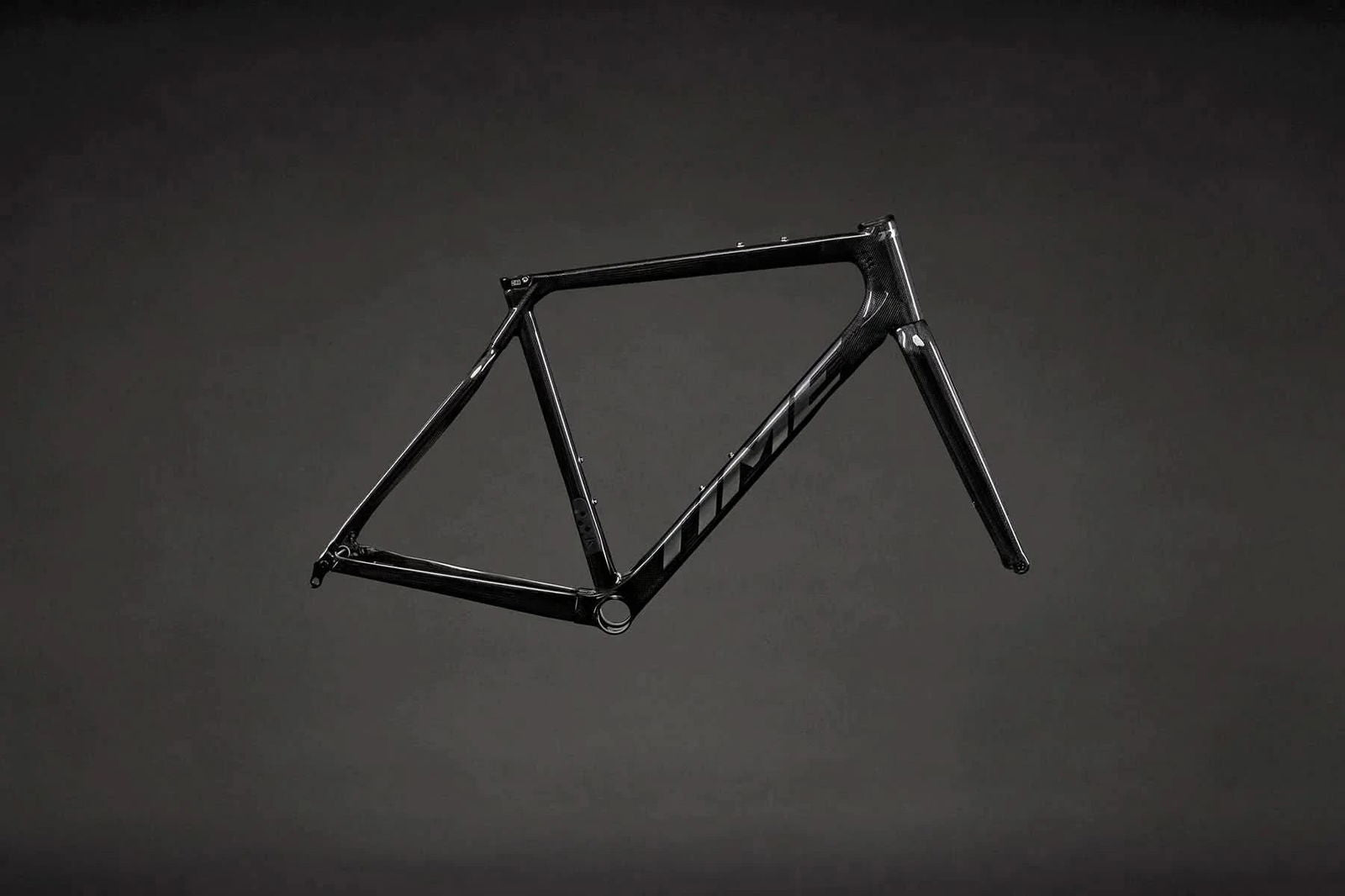

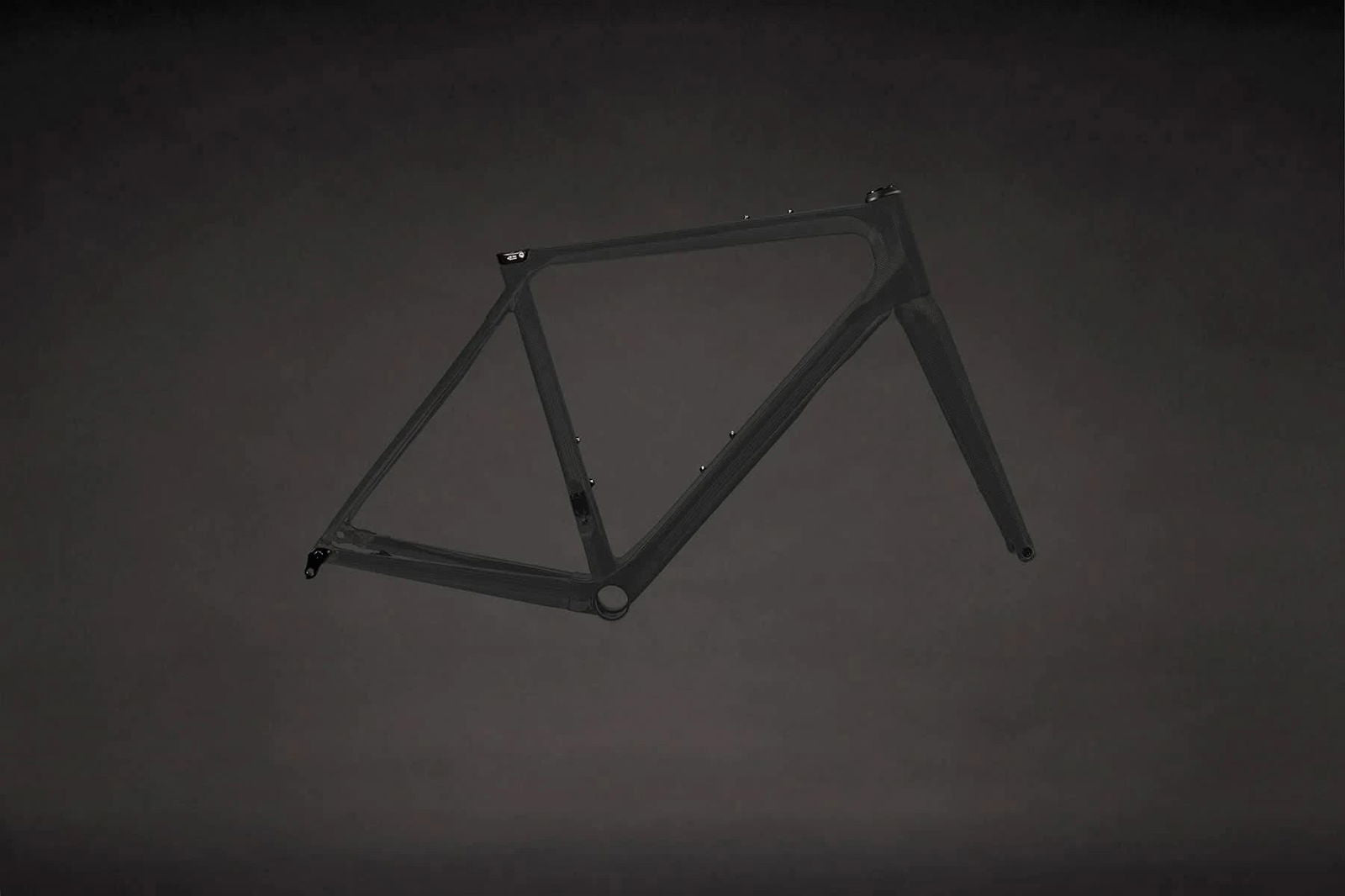

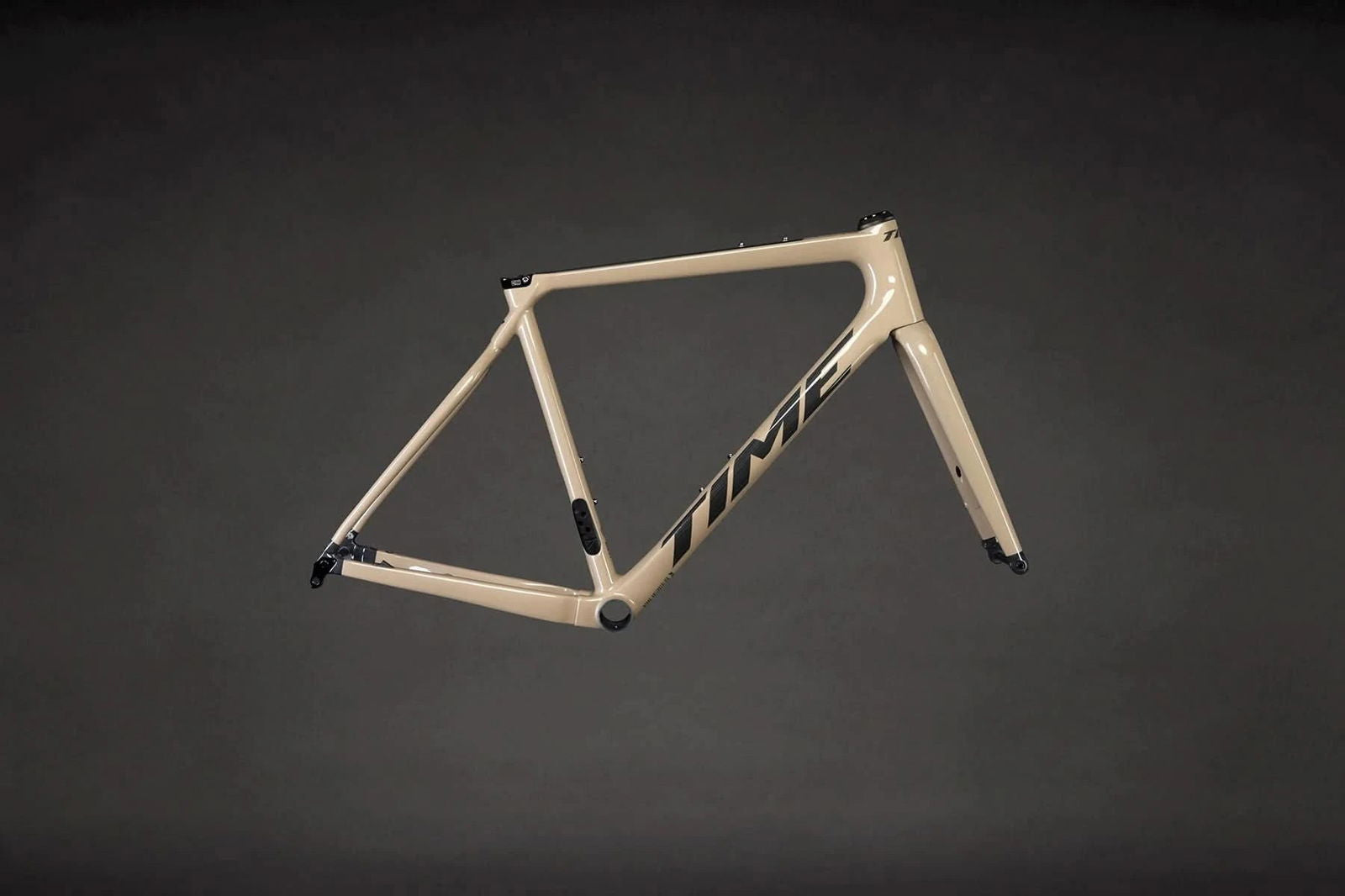

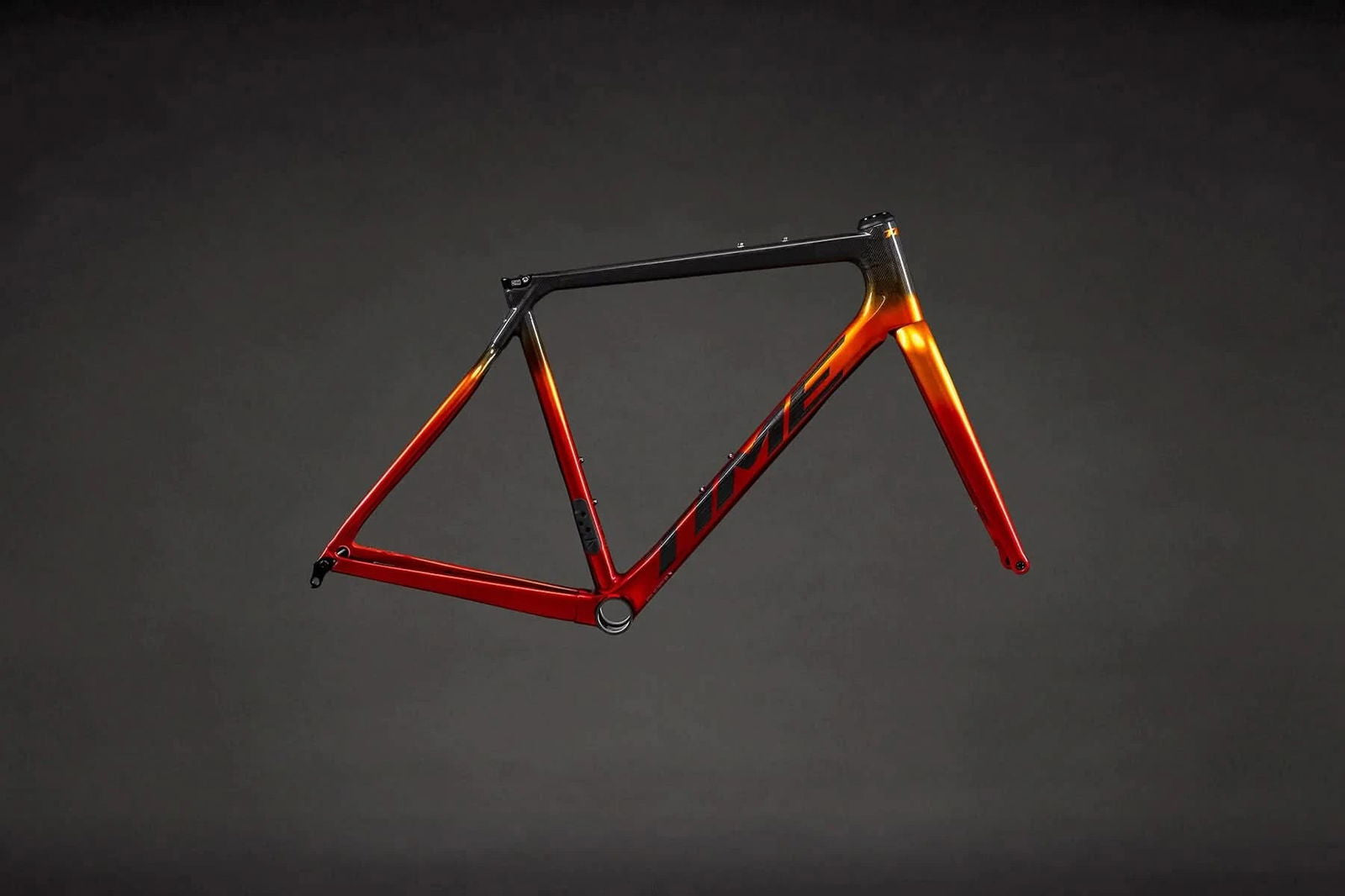

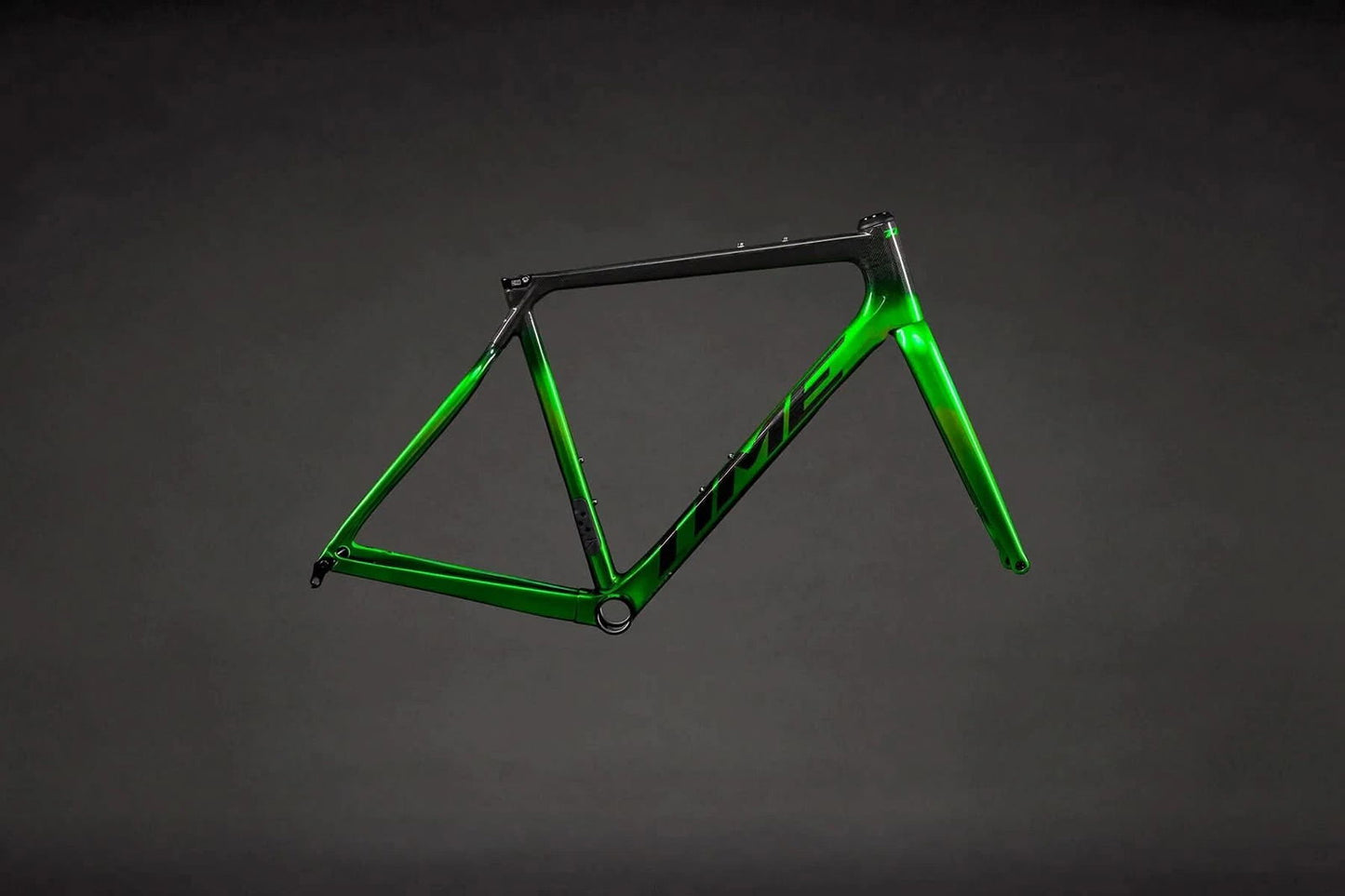

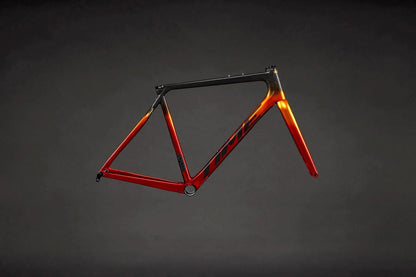

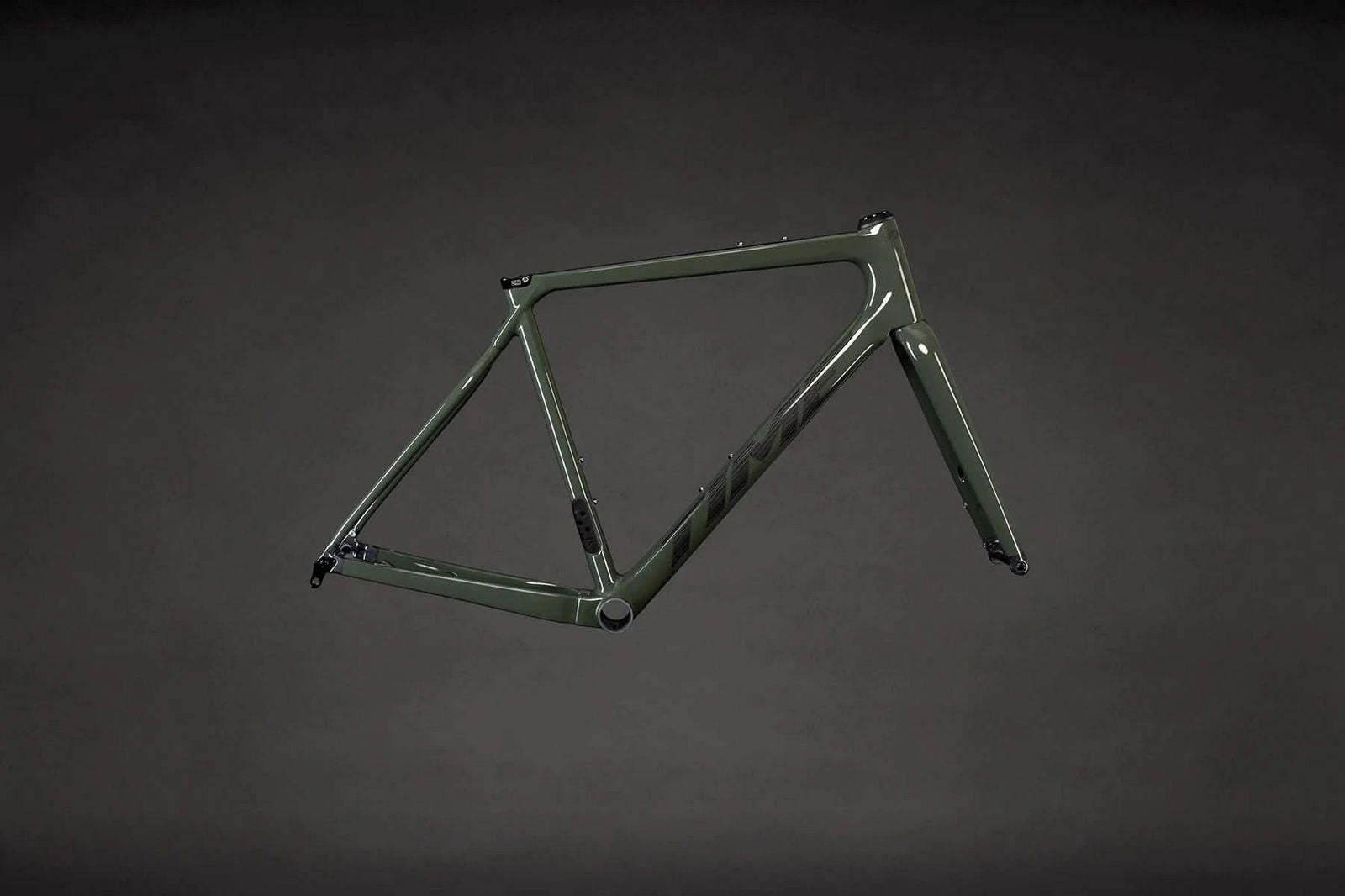

TIME ADHX 45 All Road Frameset

$6,599.99

ADHX

TIME’s debut gravel bike has quickly notched several victories – our ADHX (Alpe d’Huez X) is the first of its kind to incorporate Bio-Based Dyneema®, the World’s Strongest Fiber®, to build a better performing machine. It’s the first to utilize braided carbon structure (BCS) manufacturing, a TIME exclusive that outperforms traditional carbon prepreg construction in almost every way by incorporating several types of fiber into each multidirectional braid. The ADHX is first in quality and tolerance control thanks to our highly accurate resin transfer moulding (RTM) process and is manufactured entirely in the EU using one of the most sustainable manufacturing processes in the industry. TIME’s first performance gravel offering is more than a cursory nod – in many ways the arrival of the ADHX makes it the clear leader in a very crowded field – with pedigree to spare, an iconic look and an attitude eager to make a splash.

Is It Your Time?

ADHX is perfect for riders who want a top-performing “fast gravel” machine. Weight, stiffness, comfort and handling are cornerstones – as important as the knowledge that ADHX is technologically unique. Racers, All Road explorers and everyday riders seeking an experience off the tarmac will find ADHX checks the boxes.

At a Glance

• High Performance Gravel/Allroad

• BCS, RTM and Dyneema® technologies

• DEDA S DCR Headset for Semi and Fully-Integrated Systems

• Top Tube Mounting Point

• Forged Carbon Dropouts

• 38-40C Tire Clearance

• Five Sizes

FRAME MATERIAL: BCS Carbon Fiber - Dyneema® Enhanced

THRU AXLES: 12x120x1.5mm Pitch F, 12x159x1.5 Pitch R

SIZES: XS, SM, MD, LG, XL

SEATPOST DIAMETER: ø27.2mm

FORK STEERER TUBE: Tapered 1-1/8" to 1-1/2"

SEATPOST CLAMP: Proprietary ADHX Alloy

HEADSET BEARINGS: Top and Bottom 1-1/2" (with internal routing compression ring)

SHIFTING: Compatible with Electronic and Standard Shifting Systems

WHEEL SIZE: 700c/650b

FRONT DERAILLEUR: 1X and 2X Wide Compatible with Integrated Single Cover and Drivetrain Conversion Kit

MAXIMUM TIRE WIDTH:

  • 700x32-45c Gravel Tire
  • 650x50c Gravel Tire
  • (not all tire/rim combinations fit with adequate clearance - check for appropriate fit)

REAR DERAILLEUR: Standard Mount

BOTTOM BRACKET: PF BB386

BRAKE TYPE: Front and Rear Flat Mount Disc

DISC HUB STANDARD: 12x100mm F, 12x142mm R

ROTOR SIZE:140/160mm with Adapter

To confirm your pre-order, a 50% deposit will be required.
