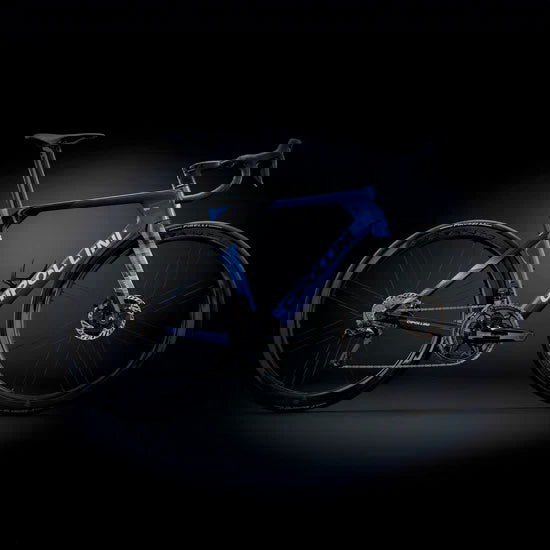

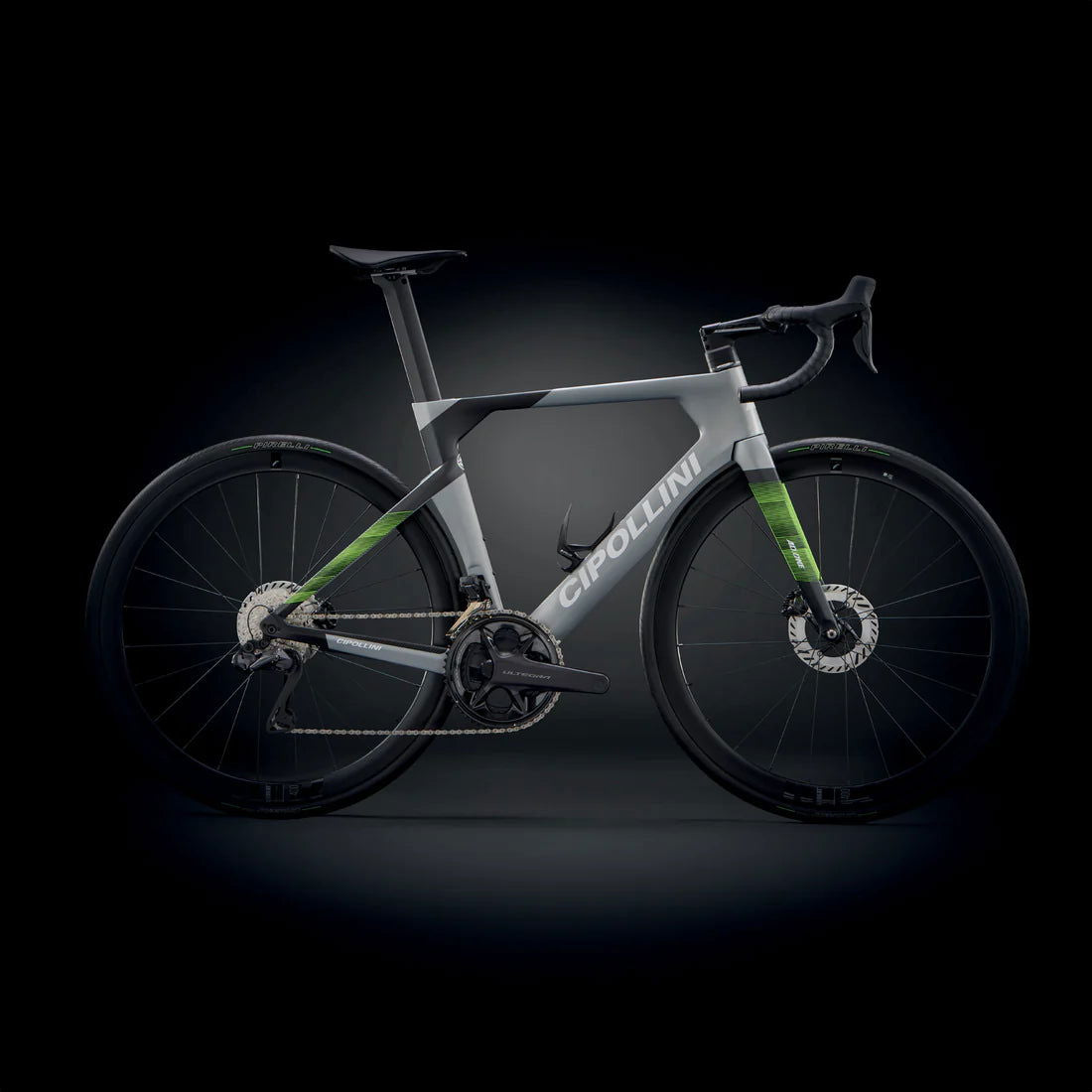

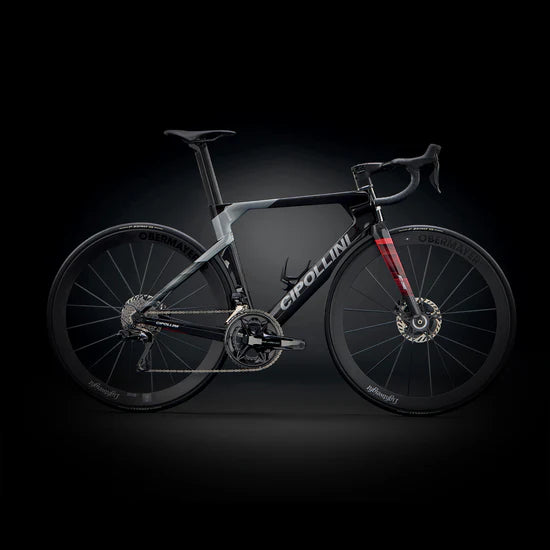

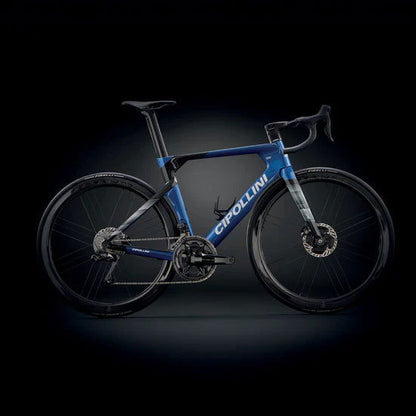

RB1K AD.ONE is the ideal match between aerodynamic studies that inspire other MCipollini models, such as the NKTT, and the rideability of a road bike. TCM technology provides the authentic monocoque frame allowing for the perfect connection of the triangle to the bottom bracket. The frame is also specifically designed to provide the same stiffness and rideability for each of the six available sizes, thanks to the different sections of the tubes and connetion sections. Titanium Thru Pins maintain the required total stiffness to achieve a no compromise experience. The 1X Ready single chainring cover dedicated to those who want to maximise aerodynamics without the front derailleur. Increased buttonhole for hydraulic maintenance, without having to remove the nose cone.
maximum tyre width: 29 mm (Larghezza Misurata)
central movement: PRESSFIT 46 X 86,5 mm
fork weight: 390 g
chassis weight:1.010 g
seat post: OFFSET 0 mm 130 g. Optional: OFFSET 12 mm
headset: CONICAL 1.1/2' 1.1/2'
break system: DISC BRAKE (FLAT MOUNT, THRU AXLE 12 X 142 mm - 12 X 100 mm)
fork: MCipollini RB1K AD.ONE
chassis: MCipollini RB1K AD.ONE
Handlebar
Metron 5D integrated handlebar, the stiffest and most aero integrated handlebar and stem system. Mixing aerodynamics and ergonomics, the unique shape includes our Aero-Ergo central section. With a slight rise from the stem clamp and a 10-degree forward bend, the 5D accommodates the natural position of your arms for more comfort and easier breathing, while the wing-like shape of the bar top aids aerodynamics. Reinforced carbon fiber construction gives a great strength-to-weight ratio. The 5D features internal cable routing, with guides that accommodate wiring for electronic shifting. Now available with the new ACR System, a fully integrated Aerodynamic Cable Routing solution that routes all cables, wires, and hoses internally. Now available in the new 3K carbon finish.
SIZES
-6 x L90 x W380 mm
-6 x L100 x W400, 420mm
-6 x L110 x W400, 420mm
-6 x L120 x W400, 420mm
-6 x L130 x W400, 420, 440mm
-6 x L140 x W400, 420mmm
Compact 125mm drop, 80mm reach
Comes with:
-2x10mm and 1x5mm spacers
-Computer mount
-Garmin mount
FINISH: 3K carbon finish
Colour: Graphics - black
WEIGHT: 363 grams (110 x 420mm)
SUPPLIED
Each 5D ACR 3K handlebar is supplied with propriety computer mount that supports both Garmin and Wahoo computers. In addition a Go Pro adapter suitable to use underneath he computer mount.
Available to ship in 4-6 weeks. Please contact us for more information.
