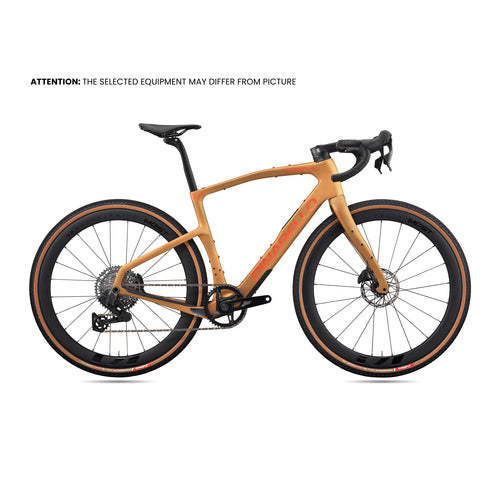

PINARELLO Grevil F5 Rival AXS 1x13 Namib Brown

PINARELLO Grevil F5 Rival AXS 1x13 Namib Brown

By Pinarello

Regular price $8,499.00 AUD
Regular price Sale price $8,499.00 AUD
Sale Sold out
Shipping calculated at checkout.
Size
View full details

If you want to win a Gravel race, this is the bike for you.



The versatile GREVIL F is ready for anything. It can accommodate any kind of wheel or tyre combination, adapting to your every need, giving you the freedom to push the limits and compete with yourself.



Even off road, aerodynamics count. Every watt saved brings you closer to victory, so the GREVIL F’s design puts a major focus on aerodynamics and rigidity. If you want to triumph on every terrain, this is the bike for you.



AN AERO GRAVEL BIKE?



Aerodynamics always count. Gravel races often exceed 200km, with speeds reaching 70km/h, every watt saved brings us a little bit closer to victory.



FORK FLAP



Fork Flap: Stabilises the flow of air on the front end and greatly improves the aerodynamic penetration coefficient.



FLAT BACK PROFILE



Derived from the DOGMA, this profile reduces aerodynamic drag on the tube, especially when there are bottles present.



TICR



The complete integration of all cables offers aerodynamic improvement and allows for greater ease when loading bags.



GRAVEL GEOMETRY



Differentiated geometry and rake ensures the same trail and the same control across all frame sizes.



- Reach and stack: Compared to a traditional road bike, the GREVIL F has shorter reach and higher stack to create an elongated position, offering better comfort and better handling

- An increased seat tube angle allows for greater wheel clearance

- Modified fork angle and Rake ensures better handling and riding comfort

- Chain stays: Measuring between 422-425mm. This provides the best compromise between responsiveness and comfort. Compatible with 700c or 650b wheels.



TWIN ARMS



Maximum energy transmission and vibration absorption

The right chain stay is rotated downwards, as is the right seat stay, to have both rear triangles symmetrical with a uniform response to pedal strokes. Different connection points for the seat stays allows the seat tube to absorb impacts coming from the rear wheel in a more uniform way.



T700 CARBON FIBER



For the GREVIL F, the carbon fiber used is T700 from Toray, the best carbon fiber manufacturer in the world. We combine the perfect mix of different types of HM (high modulus) and HT (high strength) fibers to achieve the ultimate balance of rigidity and vibration absorption.

FRAME TORAY T700 UD

FORK F Onda Fork with ForkFlap™, Tapered head tube

CRANKSET AND CHAINRINGS SRAM RIVAL AXS XPLR 1x13

CASSETTE SRAM RIVAL

CHAIN SRAM RIVAL

BOTTOM BRACKET SRAM BB DUB ITALIAN 70mm ROAD WIDE

FRONT BRAKE DISC SRAMRival 2 pistons, 160mm rotor

REAR BRAKE DISC SRAMRival 2 pistons, 160mm rotor

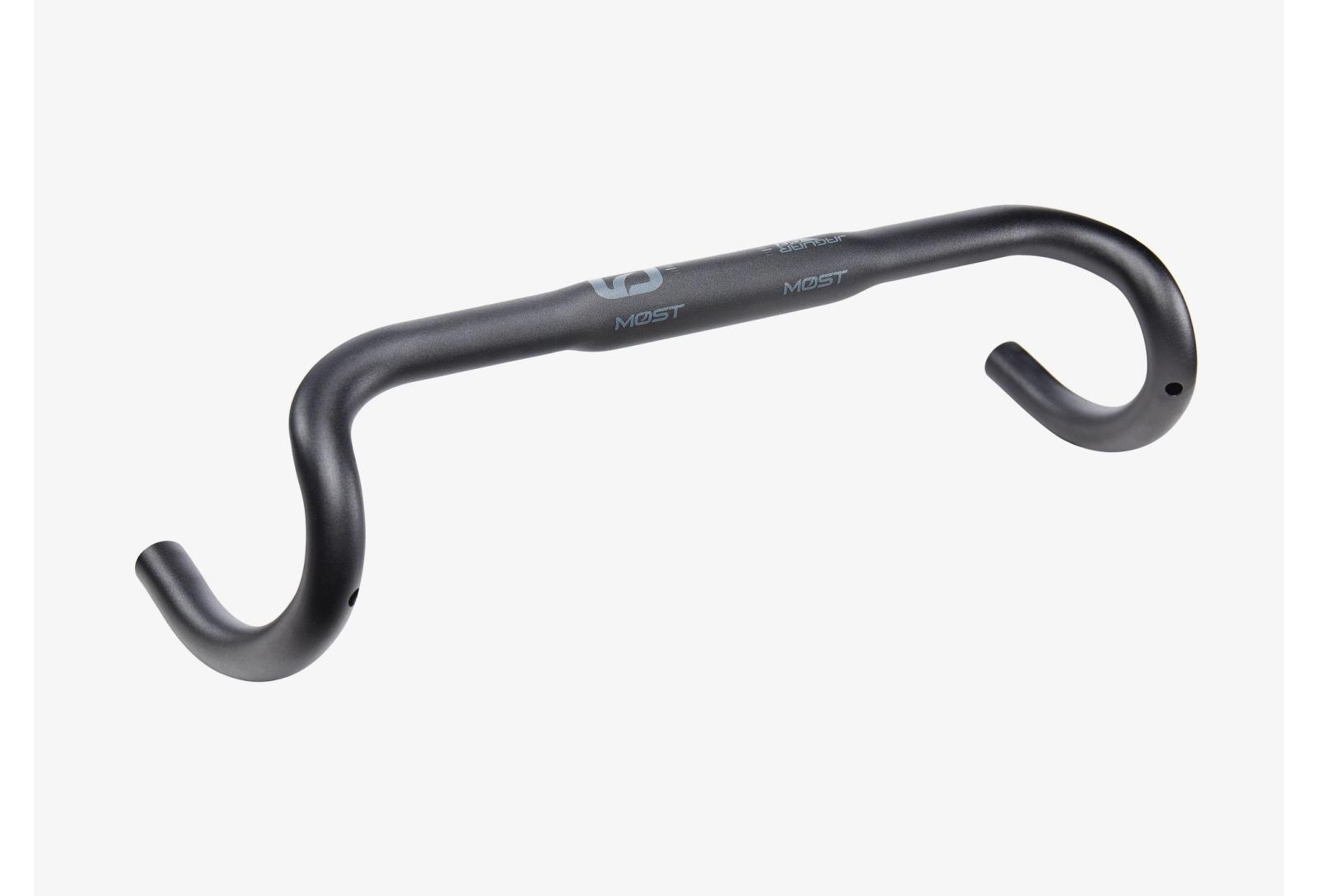

HANDLEBAR JAGUAR XA GR TICR

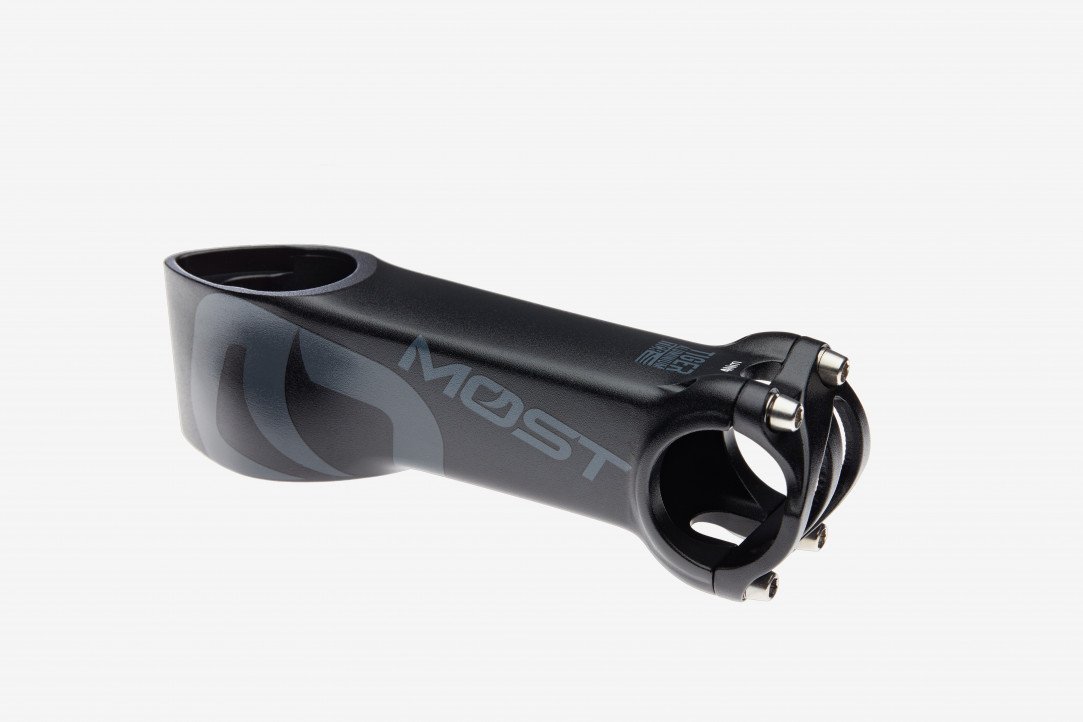

STEM TIGER ALU AERO TICR

BAR TAPE Bar Tape MOST Ultragrip evo 3mm - Black

SADDLE Most Lynx My26

SEATPOST D-SHAPE SEATPOST

SEAT CLAMP fsc frontal seat clamp

TYRES DISC VITTORIA TERRENO T50 45

WHEELSET DISC MOST Gravel Carbon 45

AXLES DISC NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal

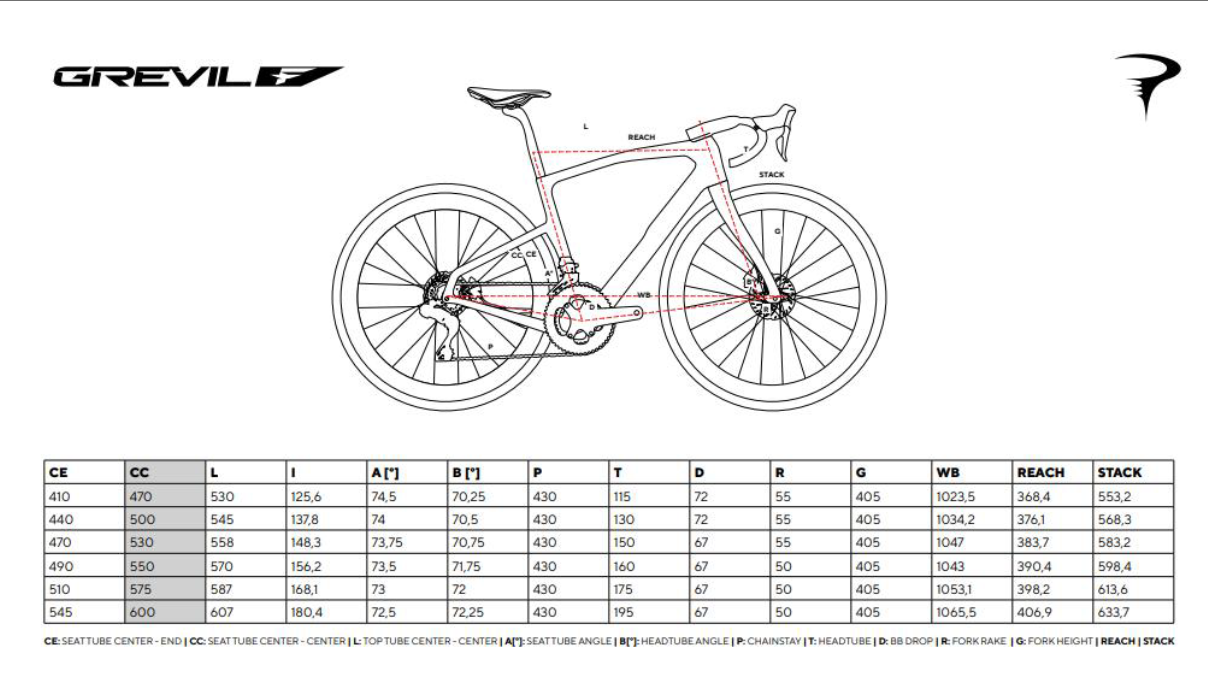

Geometry Image
Handlebar Image
Handlebar Image
FIND MY SIZE

Custom Build

Custom Build in Australia and we can modify the specs per your preference please enquire today.

WHEELSET

Shimano Dura Ace or Equivalent in price up to your choice

SADDLE

Prologo Scratch M5 or specific from your request

FULL GROUPSET

Shimano Dura Ace R9270 Di2 Disc see the specs

FRAME

Carbon Hand made in Italy

HANDLEBAR

Colnago CC01 we can see the size options
