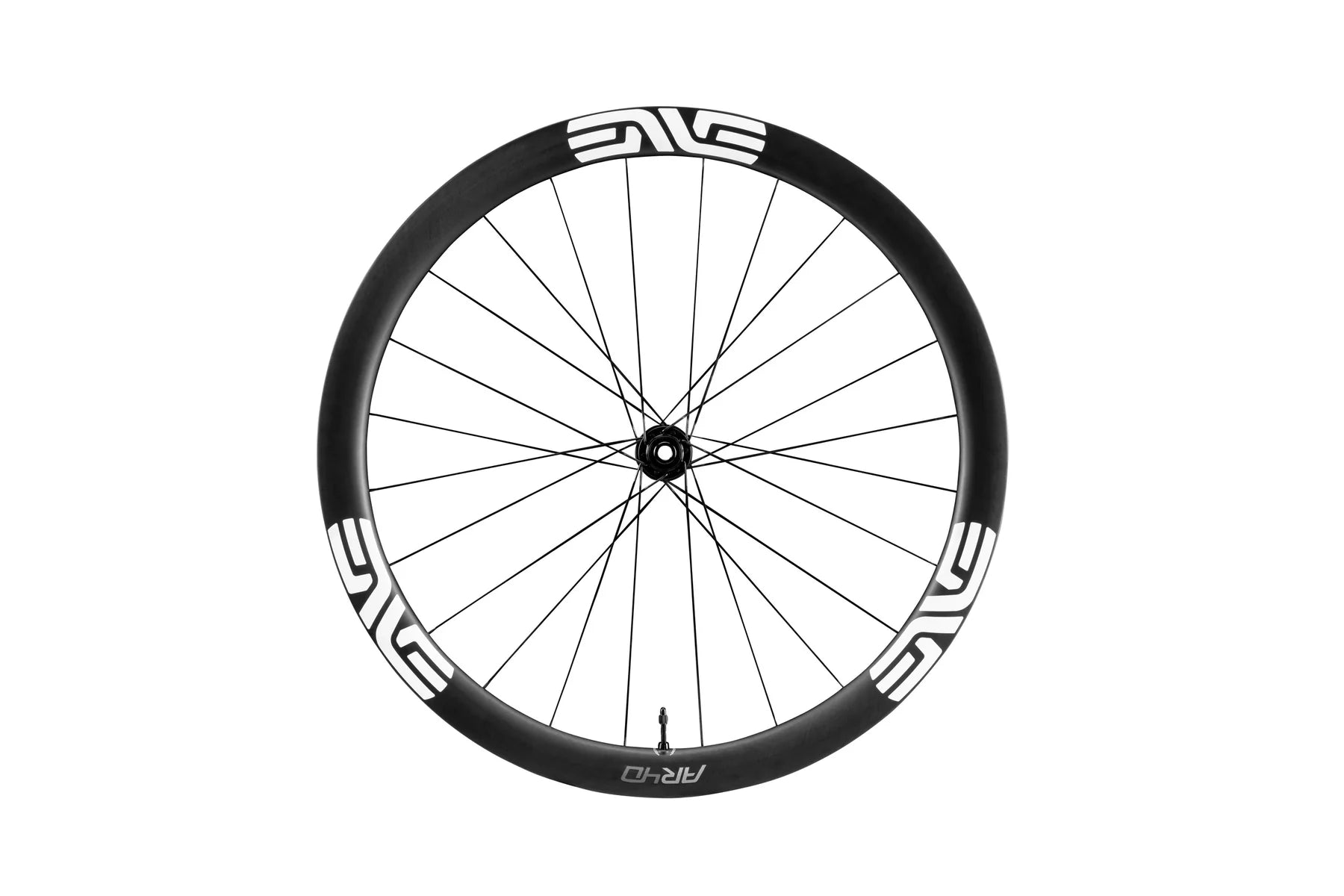

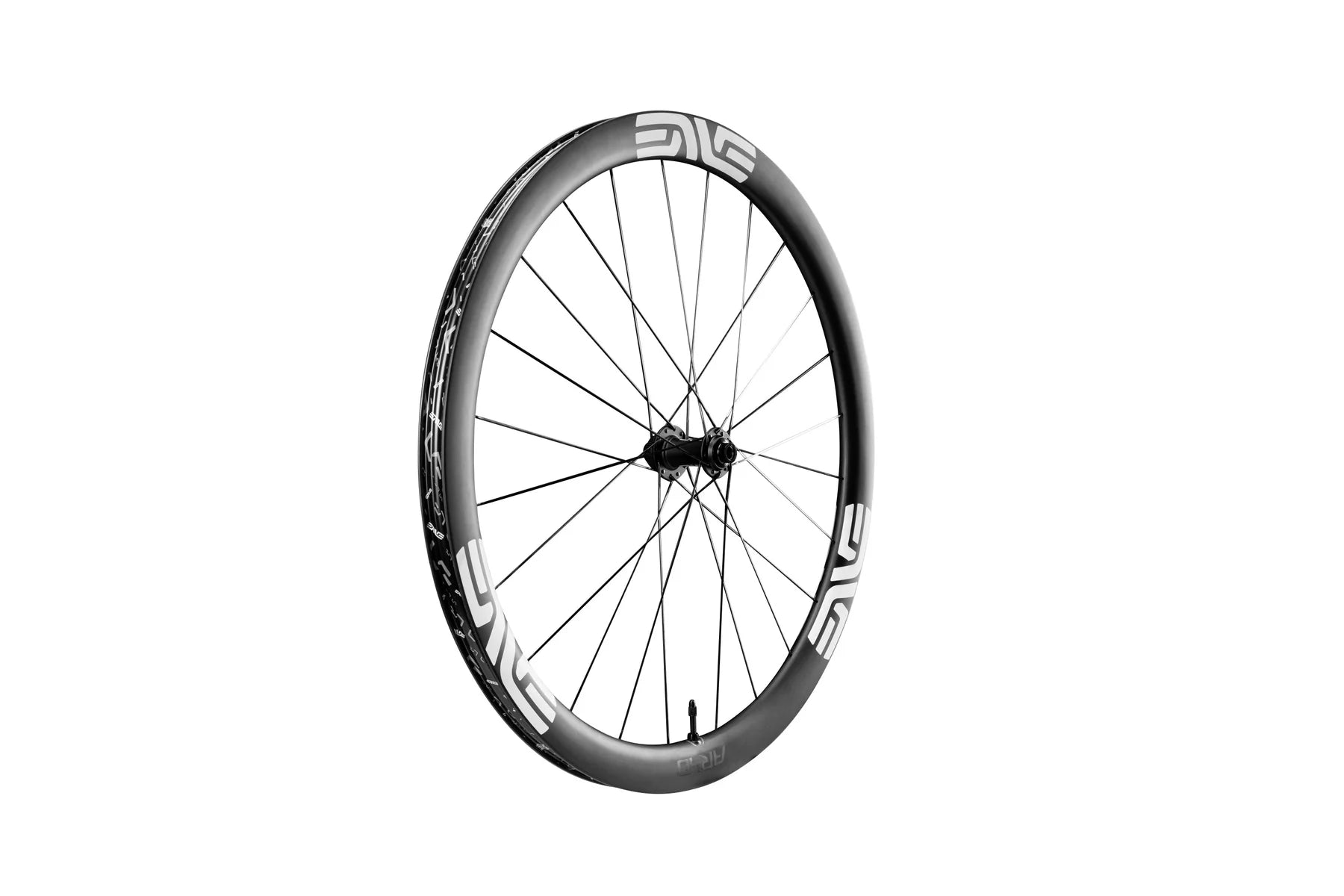

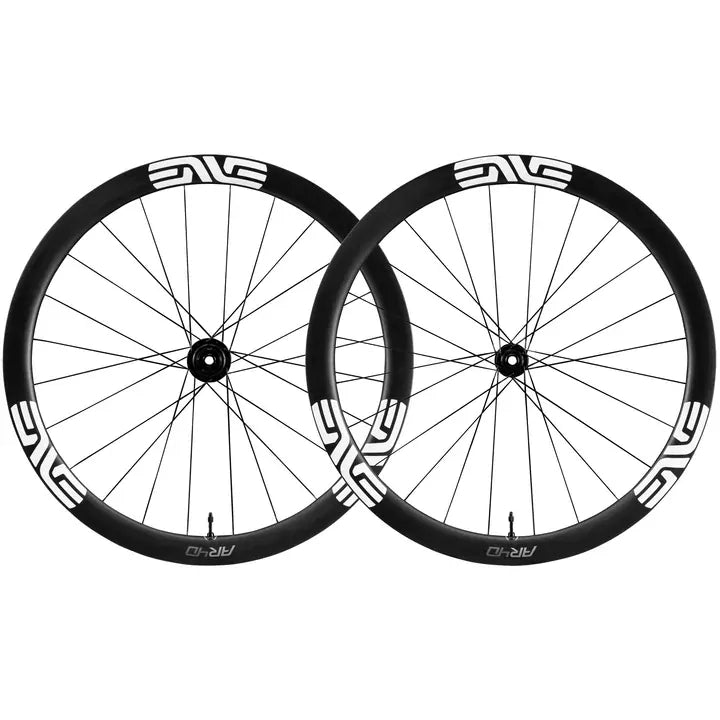

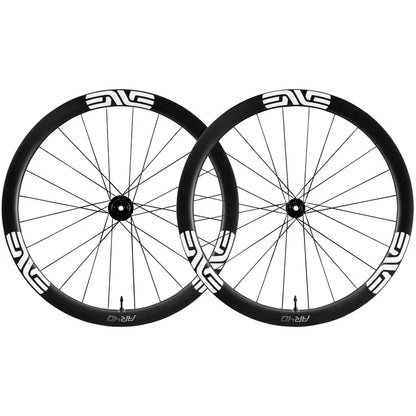

The AR40 is the latest addition to the Foundation lineup.
Featuring an aerodynamically optimized 40mm rim depth front and rear with a 25mm internal rim width, the AR40 is designed to deliver ultimate versatility for the road ride and racer looking for performance on and off-road.
Product Details
- Ultimate versatility for the on and off-road rider
- 1515g Wheelset Weight Avg. (+/- 3%)
- Inner Rim Width: 25mm
- Aero optimized tire size: 27mm*
- Tested and qualified to ENVE's gravel standards
- For Use With Tubeless Tires Only
- Hookless
Build Specs
- Spokes: Sapim CX-Ray J-Bend
- Hub: ENVE INNERDRIVE - Foundation
- Hub Spacing: Rear: 12x142
- Nipples: Alpina Nylock Brass
- Spoke Tension: 120kgf
- Brake Type: Centerlock
Dimensions
- Effective Rim Diameter (ERD): 579mm (+/- 3mm)
- Internal Rim Width: 25mm
- Sidewall Width: 3.6mm
- Pinch Flat Technology: Wide Hookless Bead
- Hole Count: 24h
- Depth: 40mm
- Tubeless Tape Width: 29mm
- Tubeless Valve Length: Front and Rear - 61mm
- Spoke Tension: 120kgf
- Brake Type: Centerlock
- Spacing: Front: 12x100 - Rear: 12x142
Weights
- Rim Weight: Front - 425g Rear - 425g
- Wheel Weight: Front - 690g Rear - 825g
- Wheelset Weight: 1515g (Includes Tape and Valves - HG Freehub)
