Drive 50D II

Drive 50D II

By Brisbane Bicycle Services

Regular price $1,999.00 AUD
Regular price Sale price $1,999.00 AUD
Sale Sold out
Shipping calculated at checkout.
FREEHUB
DECAL
View full details

After years of research and development, our engineers have made advancements in maximizing a rim’s durability and responsiveness without adding material, allowing for the next generation of Drive wheels to remain lightweight, despite increasing inner and outer rim widths to support wider tires.

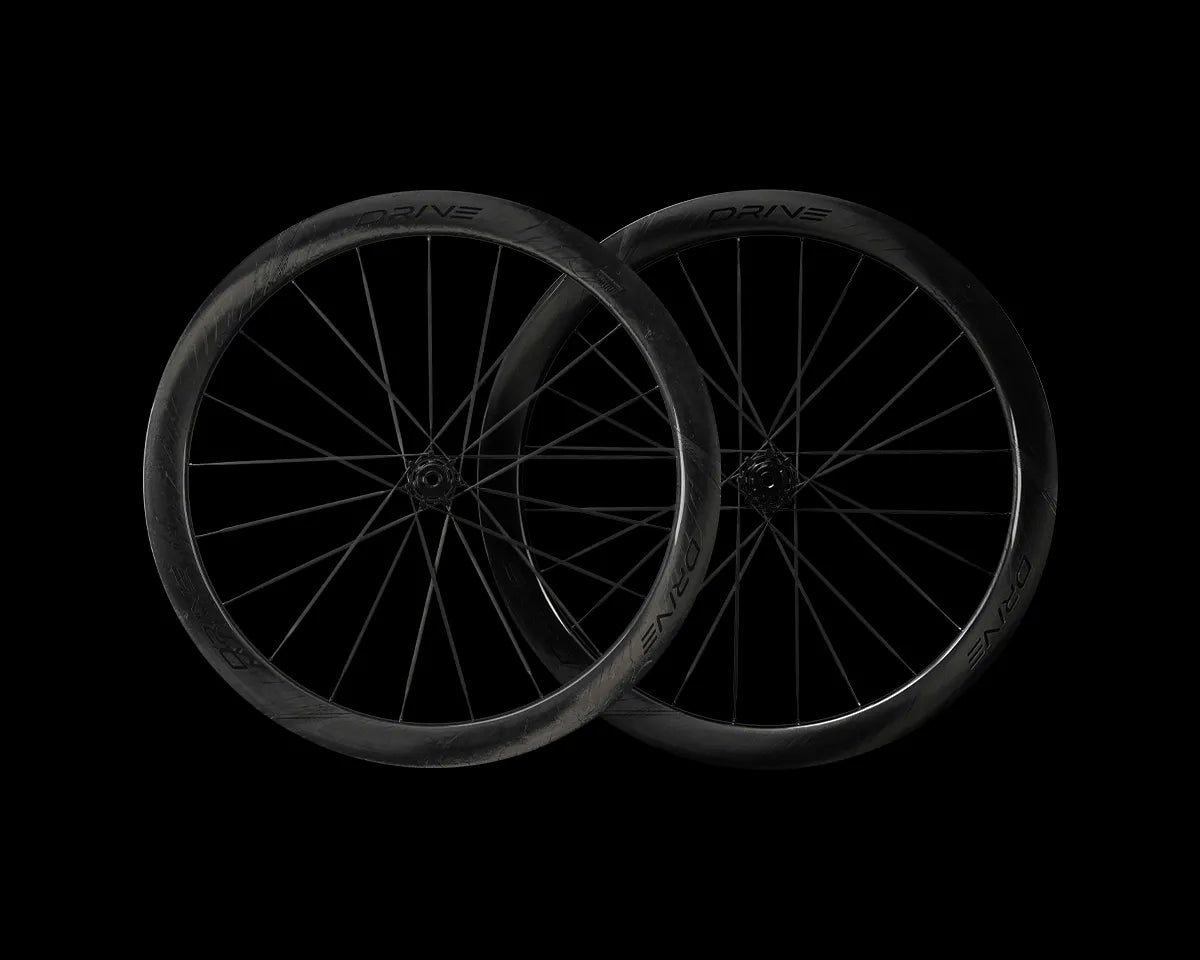

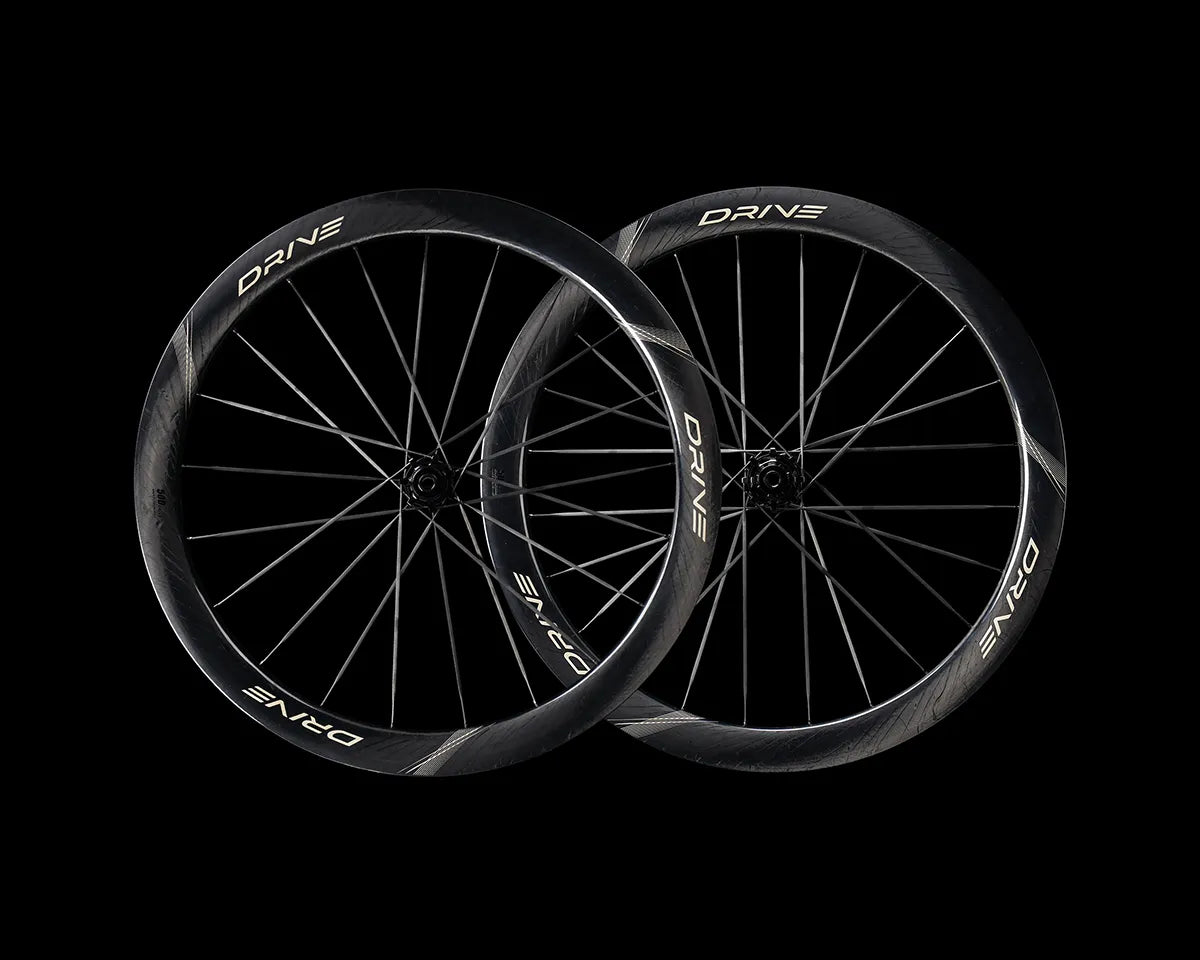

The Drive 50D II was designed to be the perfect all-round racing wheelset, balancing weight and aerodynamics. It weighs just 1300 grams for the pair. The U/V-shaped rim profile improves lateral airflow, increasing stability on fast descents and in windy conditions.

In addition to optimizing the rim design, the second generation of Drive wheels comes with several upgrades, namely ETRTO-compliant reduced hooks to offer better aerodynamics, comfort, and traction, quality S&S ceramic bearings, 4.5mm carbon spokes, and our one-of-a-kind Kinetic hub, which features a conical ratchet design.

– Intended Use: Road
– Carbon Spoke Wheelset
– Disc Brake Wheelset
– Brake Interface: Center Lock by default
– Axle: Thru axle by default

RimSeriesDrive II

Wheel Size700c

Tire CompatibilityClincher/ Tubeless

Bead TypeHooked

Rim Depth 50mm

Inner Width23mm

Outer Width31mm

HubFront Hub Spacing12x100mm

Rear Hub Spacing12x142mm

Bearings S&S Ceramic

Brake Compatibility Disc (Center Lock)

Freehub Type Ratchet

Freehub Compatibility Shimano / SRAM XDR / Shimano MSR / Campagnolo

Spoke Front Spoke Pattern 3X Radial/2X (1:2)

Rear Spoke Pattern 1X/3X (1:2)


Spoke Count21F/24R

Spoke Type Carbon Spoke (4.5mm)
Nipple Type Alloy Secure Lock

OtherRim Finish Glossy Marbling Black

Extras Rim Tape(Installed), Tubeless Valves(Installed)

Weight (Pair) 1300±30g (without tubeless)
Rider Weight Limit 270lbs/120kg
Compatible Tire Sizes 700 x 30-40c

CertificationUCI Approved

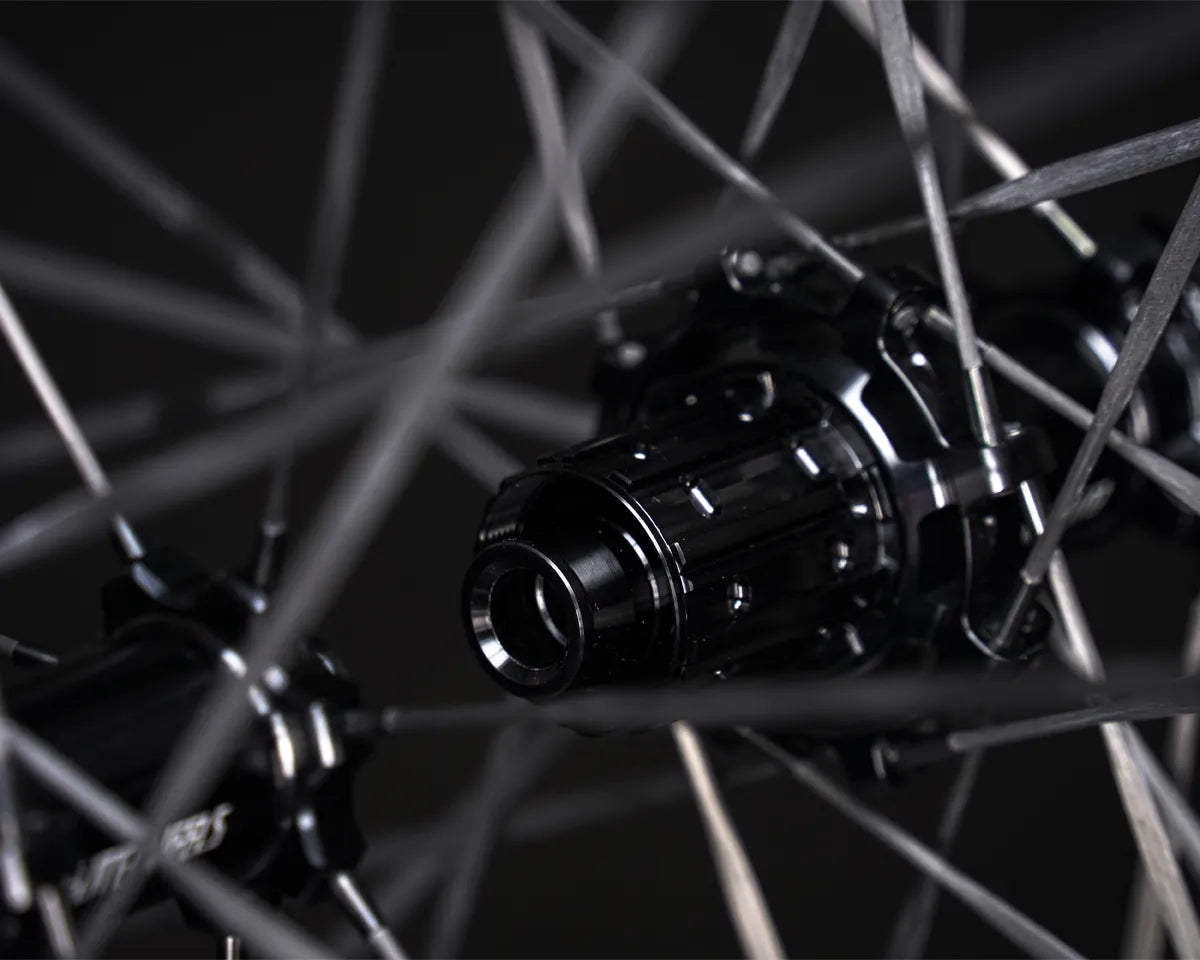

RATCHET HUBS The Drive G36’s features our new Kinetic hub, which contains two high engagement 50T(7.2°) star ratchets machined into a conical shape, which allows for a increase in surface area. This leads to increased longevity and durability, as torque can be distributed over a larger area. The Kinetic hub also makes use of a stronger spring, which reduces skipping and slipping under load. The front and rear hubs both make use of hybrid Steel TPI bearings, which offer performance gains in rolling resistance, saving you precious watts. We machine our own high-precision hubs in-house with Fanuc CNC machines to tolerances of just 0.02mm, improving longevity. The hubs also feature waterproof seals to eliminate ingress, preventing bearing contamination.

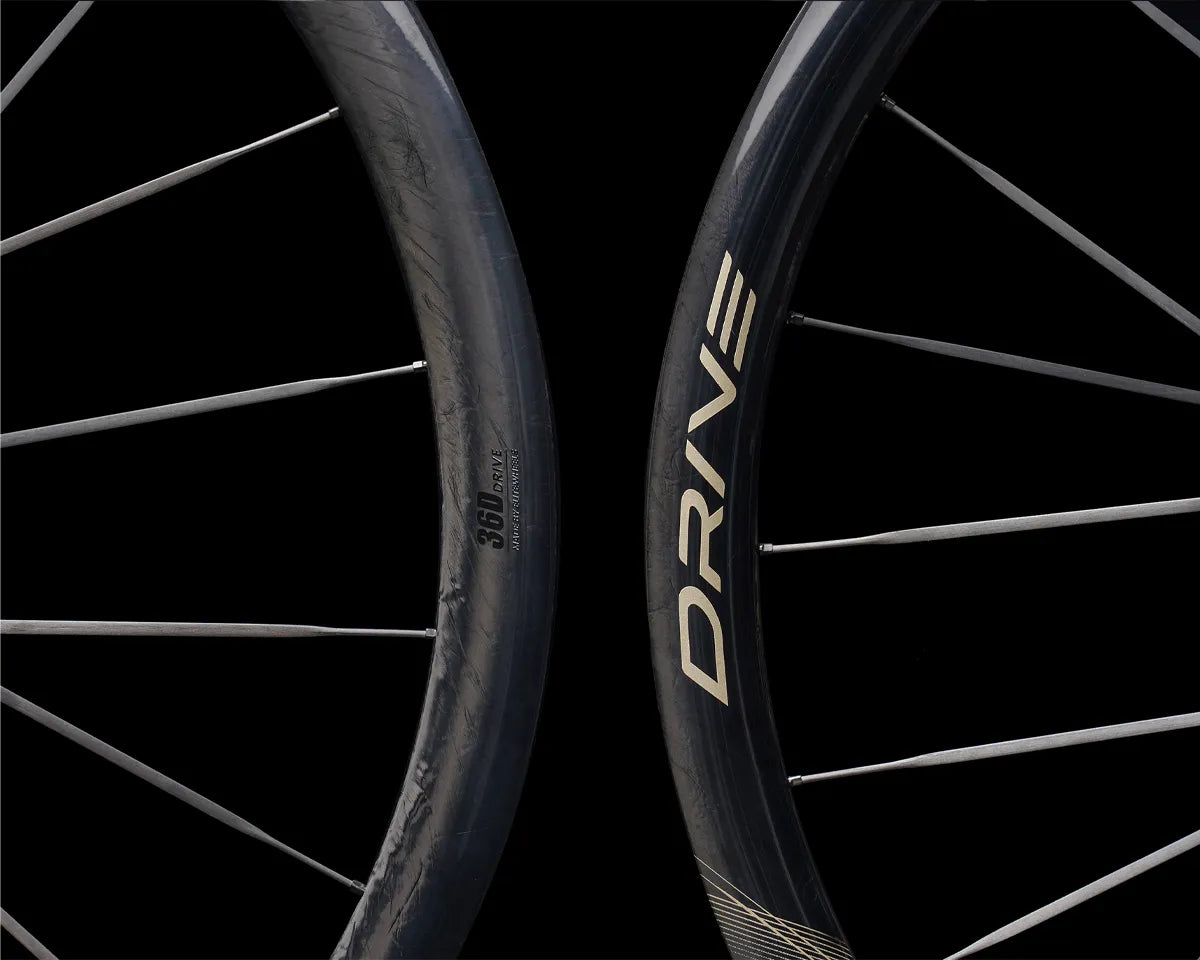

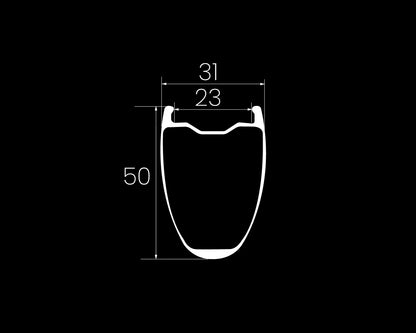

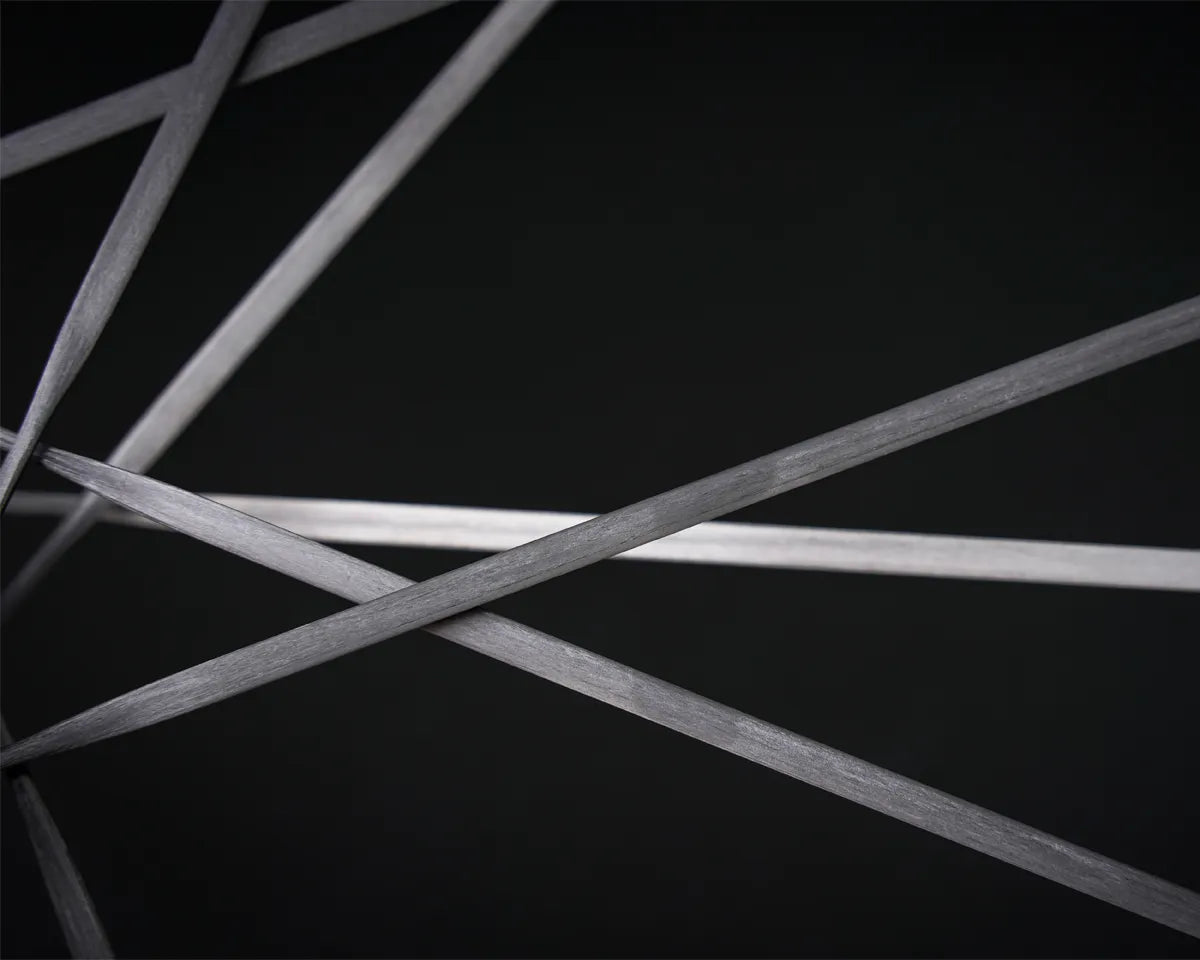

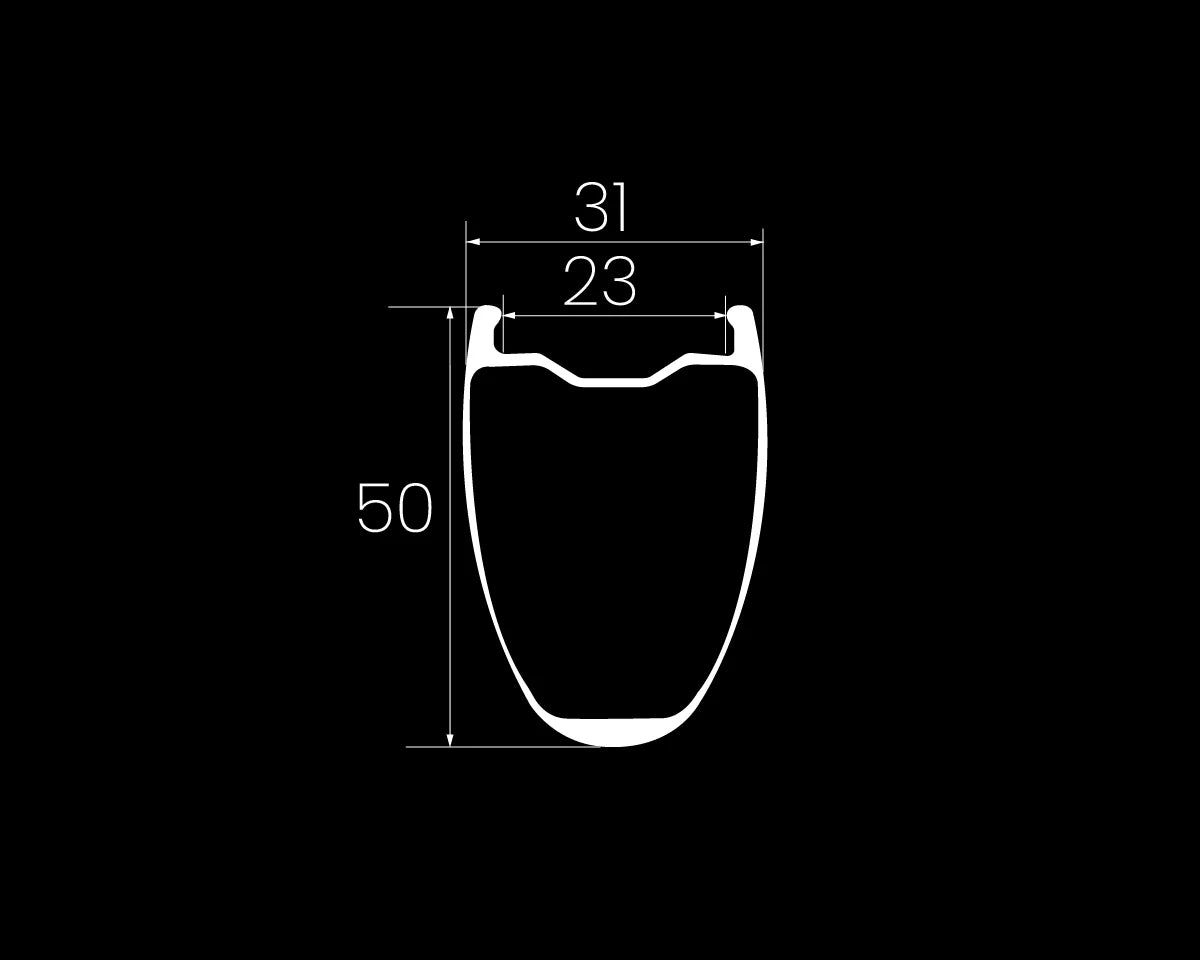

RIMS Drive II wheelsets feature wider, 23mm inner widths and 31mm outer widths, making them aerodynamically optimized for 28c and 30c tires. Wider tires allow for a more comfortable ride, as they can be run at lower pressures. The wider inner rim width gives wider tires a better shape, improving grip and comfort, while the 31mm external widths improve the overall aerodynamics when paired with 28mm or 30mm tires, which are now the norm in road cycling. What makes our clincher, tubeless-ready rims unique is that we use a reduced hook design. We see the benefits and drawbacks of standard hooked as well as hookless rims and have found a way to offer the best of both worlds. Our ETRTO-compliant reduced hooks allow for the aerodynamic, durability, and optimal tire shape that hookless rims provide with the security, tire compatibility, and ability to run higher pressures that a clincher can offer. Despite the increase in widths, we were able to keep the same weights as the original Drive wheelsets. This was accomplished in part due to our new advancements in our UNI carbon fiber layup technology. SPOKES In the Drive II wheels, we are using 4.5mm aero bladed carbon spokes. As opposed bonded carbon spokes, ours are as easily replaceable as their steel counterparts. Each spoke weighs roughly 3 grams each. In our laboratory testing, they have proven to be 8% more laterally stiff than steel spoke, leading to more efficient power transfer when riding, saving you watts. The carbon spokes on the Drive II wheelsets do not experience spoke twist, meaning they will always remain in the most aerodynamic position, guaranteeing you always get the same high level of performance. Our carbon spokes have been proven reliable and durable for over three years in the pro peloton by our sponsored UCI ProTeam and Continental teams. KINETIC RATCHET HUB The Drive II road wheelsets features our brand new, Kinetic hub, which uses a 50T star ratchet mechanism,instead of the previous pawl-ratchet mechanism. Kinetic’s ratchets are machined in a conical shape, allowing for increased engagement surface area which increases longevity. A new, stronger spring reduces the likelihood of skipping and slipping, ensuring a consistent riding experience. The hub also features a new waterproof seal reducing the likelihood of ingress. A stronger spring has also been chosen, which significantly reduces the incidence of ratchets slipping and skipping when pedaling. Just like all of our other designs, the Kinetic hub is made by us using 5-axis CNC machines. High-grade precision S&S ceramic bearings were chosen to improve their lifespan and reduce rolling resistance, saving you precious watts. While having high quality bearings is important, a perfect bearing seat fit is essential for optimal performance. Our CNC machines precisely machine bearing seats to 0.02mm tolerances, guaranteeing exceptionally low rolling resistance and improving longevity. TESTING At Elitewheels, we see value in ensuring what we offer not only performs well but has excellent durability and longevity. Each wheelset undergoes more than 20+ laboratory tests at our factory including various durability, longevity, and stiffness tests. We also ensure each wheel passes the UCI Vertical Impact Test, which gives the green light for wheels to be used at the top levels of professional racing. Besides the laboratory tests, we put a strong emphasis on aerodynamic and real world testing. Our engineers run CFD (Computational Fluid Dyamics) programs for hundreds of hours during the design phase to aerodynamically optimize wheelsets before even producing the first prototype. After our engineering team is satisfied and the prototype is ready, we conduct wind tunnel testing to verify the results as well as real world testing by our staff and our sponsored UCI pro cycling teams, getting as much feedback as possible. The pro riders offer a unique perspective due to their hundreds of thousands of kilometers of riding experience with a large number of wheelsets.
