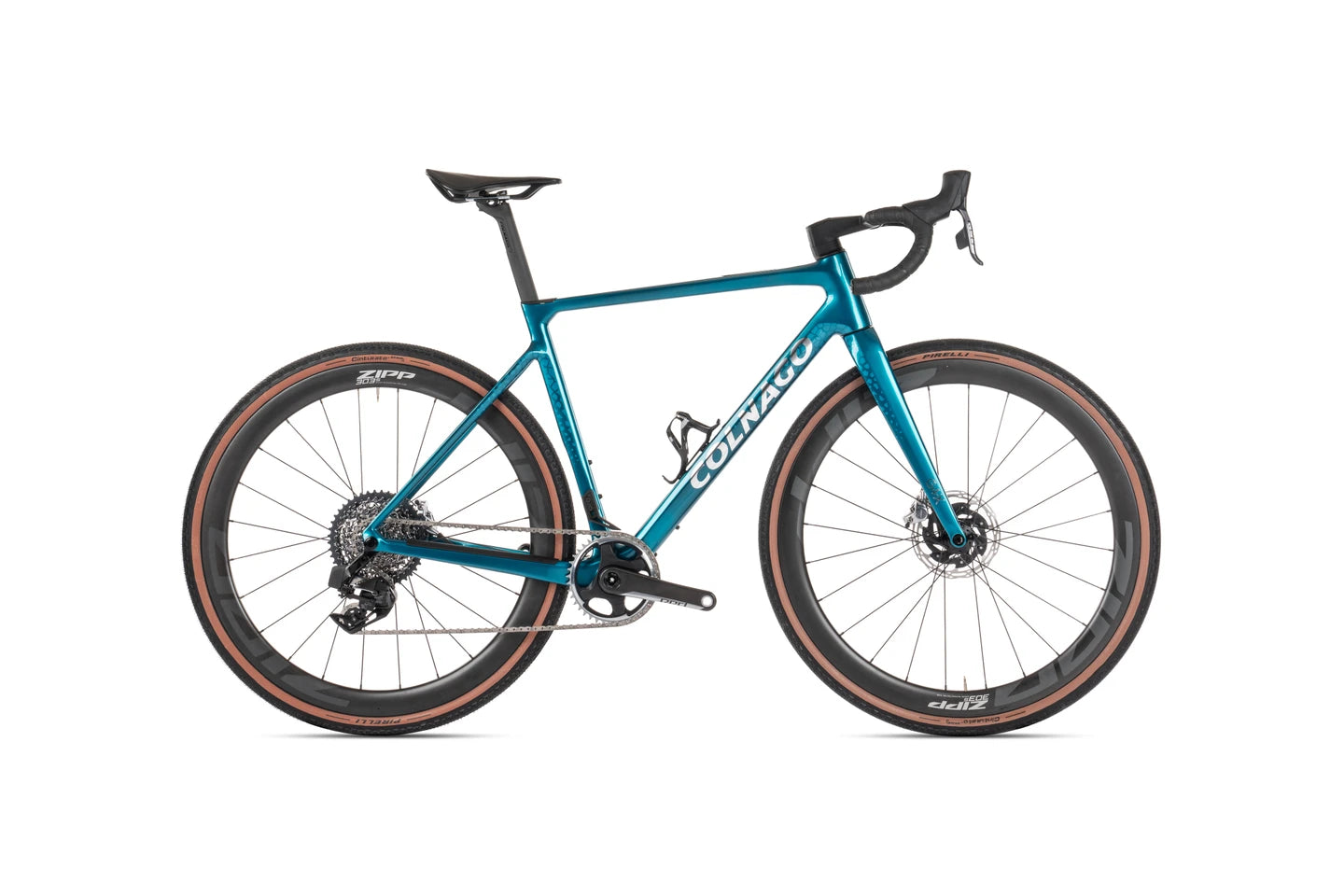

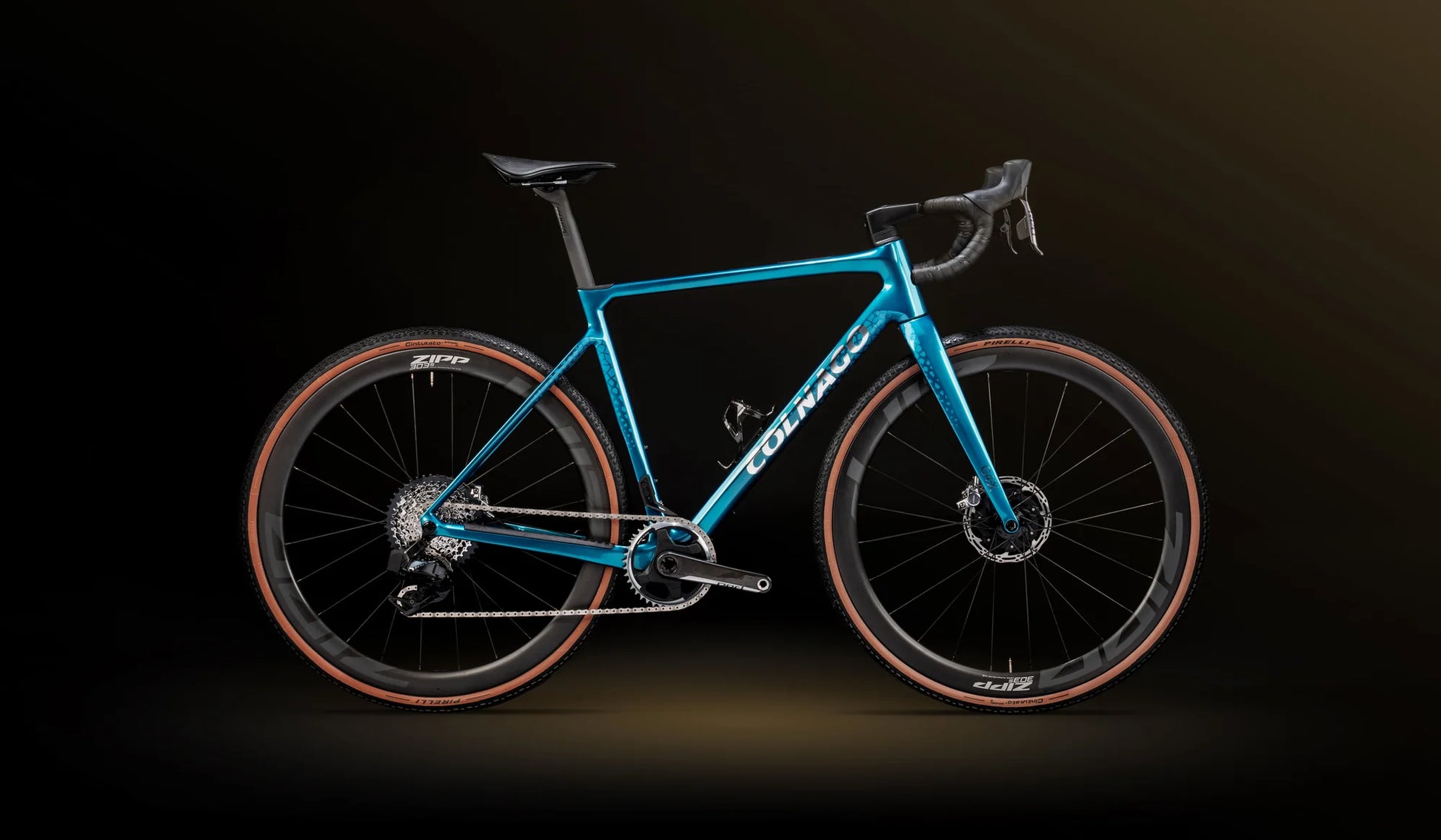

Colnago G4-X Shimano GRX 8204 ICBL Gravel Bike

Colnago G4-X Shimano GRX 8204 ICBL Gravel Bike

By Colnago

$6,499.00 AUD
$6,499.00 AUD
Sale Sold out
Shipping calculated at checkout.
Color
sizes
View full details

A balanced gravel racing bike, to perform at its best in every context

The G4-X is the result of optimizing all those factors that are important when you have to compete or go hard on dirt roads: handling, lightness, downhill rideability, stability, frame responsiveness, and, like all Colnago bikes, surprisingly wonderful to ride. The G4-X can fit tires with a maximum nominal width of 45mm. For longer adventures it may be necessary to add bags and bottle cages. This is why the G4-X is equipped with four mounting points for bottlecages or small bags. There is a new seatpost lock, designed to withstand more tightening torque and guarantee stability and safety during intense off-road riding. The perfect harmony of the elements, a balanced gravel bike. Colnago G4-X is a bike that demands to be pedaled fast, without sacrificing handling and riding pleasure.

Specifications

Series: V Series

Model: Colnago G4-X

Frame kit

Frame (material): Monocoque carbon.

Fork (material, section notes): Carbon fork for disc brakes, external cables, section with round circumference

Headset bearings: ACROS ss 42x52x7mm - 40x52x7mm

Seatpost: Carbon seatpost, 0.15 offset, "D-Shape" section

Through axles: Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)

Drivetrain (GRX not pictured)

Shifting system: SHIMANO CN-M8100

Front derailleur: -

Rear derailleur: SHIMANO RX-822

Chain: SHIMANO CN-M8100

Crankset: SHIMANO FC-RX820 42T

Cassette: SHIMANO CS-M810 10-51T

Bottom bracket: T47 ACROS

Crank length

Sizes 450 - 480: 170 mm

Sizes 520 - 570: 172.5 mm

Brakes

Brakes: SHIMANO BR-RX820

Disc size: SHIMANO RT-CL800 Ø 160MM

Brake lever: SHIMANO BL-RX820

Brake caliper: SHIMANO BR-RX820

Wheels

Wheels: Fulcrum Rapid Red 900 DB | 2-Way Fit Ready (for tyre and tubeless ready)

Material: Rims: aluminium, Spokes: stainless steel.

Rim height: Front: 24 mm; Rear: 24 mm

Internal channel width: 22 mm

Hubs: Aluminium, Sealed Cartridge Bearings

Through axles: Front: HH12-100 - Rear: HH12-142

Tyres: Pirelli Cinturato Gravel 40 TLR

Maximum tyre size: 42 mm (nominal width)

Components

Saddle: S.ITALIA NOVUS BOOST EVO Superflow FeC

Handlebar: DEDA SUPERZERO GRAVEL ALLOY

Size 45 - 48: Width: 420 mm

Size 51 - 57: Width: 440 mm

Stem: COLNAGO RS10 ALLOY

Size 45 - 48: Length: 90 mm

Size 51: Length: 100 mm

Sizes 54 - 57: Length: 110 mm

Handlebar Tape: Colnago Grip Black

Bottle cage: Colnago Matt Black (1x)

Geometry Image
FIND MY SIZE

Custom Build

Custom Build in Australia and we can modify the specs per your preference please enquire today.

WHEELSET

Fulcrum Rapid Red 900 DB | 2-Way Fit Ready (for tyre and tubeless ready)

SADDLE

"Prologo" Kappa BK, "Selle Italia" Model X BB FEC

FULL GROUPSET

Shimano GRX 820 1 x

FRAME

Series: V Series Model: Colnago G4-X Frame (material): Monocoque carbon.

HANDLEBAR

Deda Gravel 100; size 46s: width: 400 mm; size 49s - 55s: width: 420 mm; size 58s: width: 440 mm Stem: Deda ZERO1; size 46s: width: 90 mm; size 49s: width: 100 mm; size 52s - 55s: width: 110 mm; size 58s: width: 120 mm
