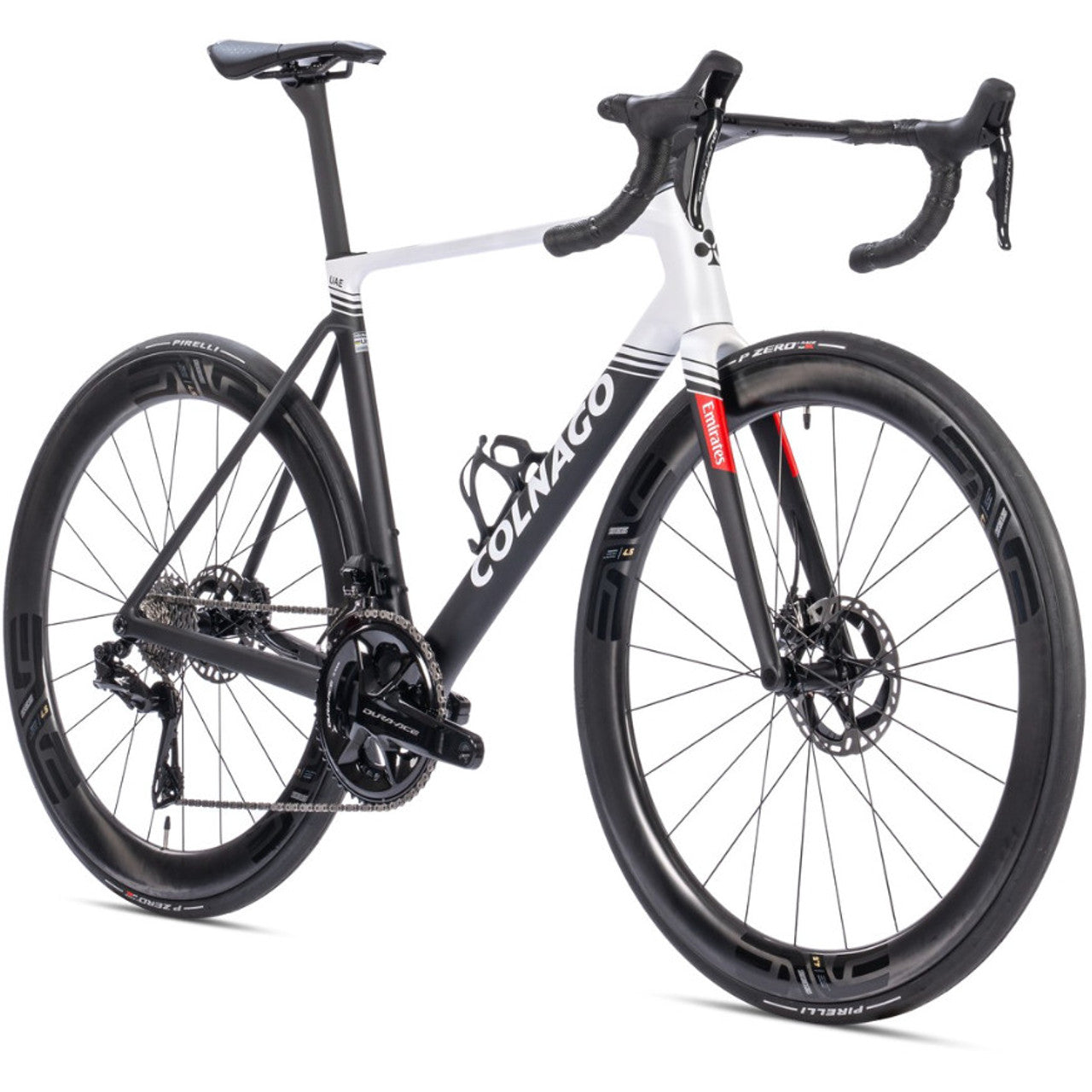

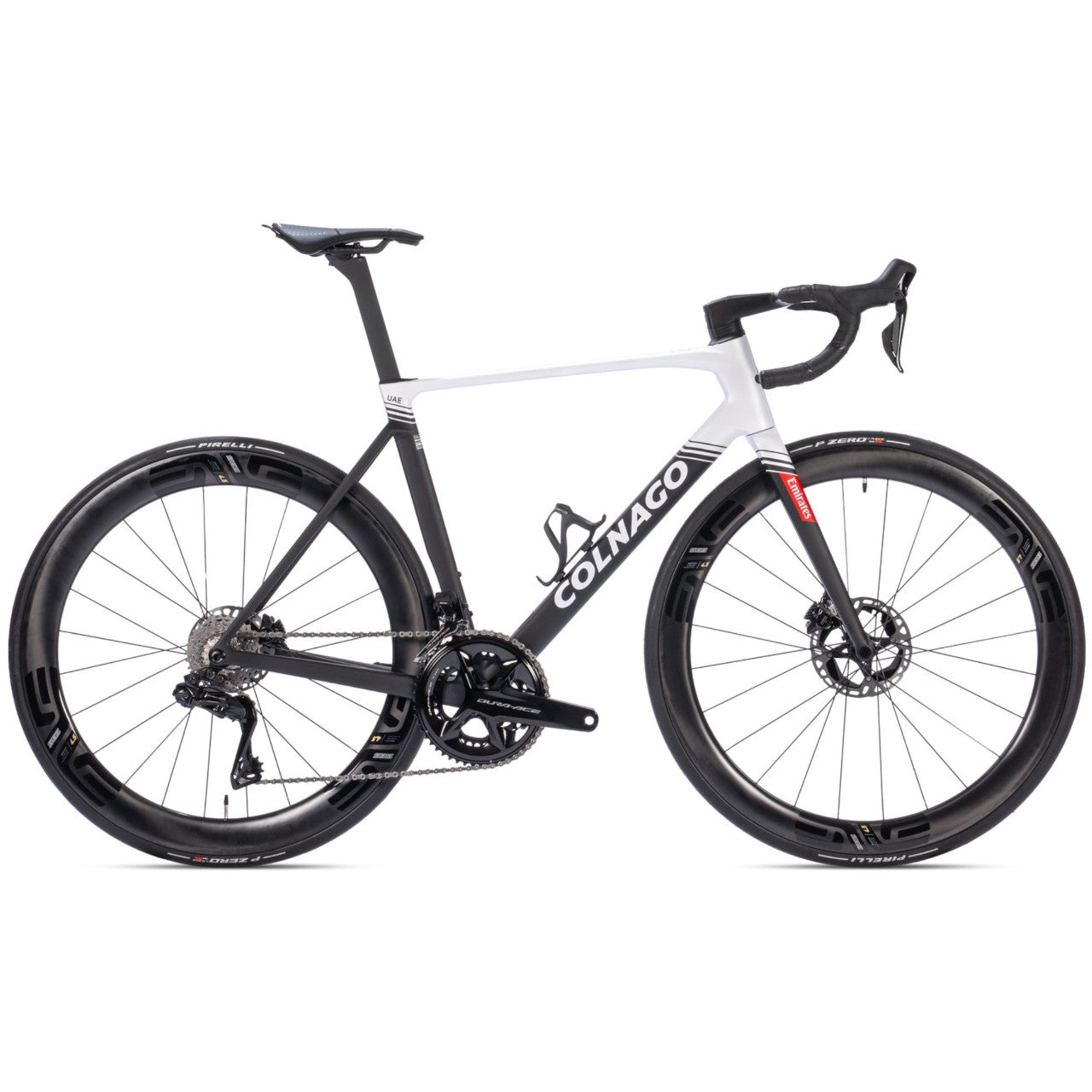

Colnago V5RS Team UAE Emirates SDM5 Dura Ace Di2 12 speed

Colnago V5RS Team UAE Emirates SDM5 Dura Ace Di2 12 speed

By Colnago

$21,999.00 AUD
$21,999.00 AUD $21,999.00 AUD
Sale Sold out
Shipping calculated at checkout.
Size
Handlebar
Wheelset
View full details

A refined balance of weight, aerodynamics, and control—built for competitive riders who demand more from every frame.

The Colnago V5Rs Frameset delivers responsive handling and efficient power transfer in a lightweight package, suited to high-level racing and long training sessions alike. Designed in collaboration with WorldTour athletes, this frameset prioritizes aerodynamic efficiency without sacrificing stiffness or ride quality.

Its carefully tuned carbon layup achieves a 12.5% weight reduction over previous models while maintaining the structural integrity expected at the highest level of racing. The reduced frontal area and updated tube shapes improve airflow, contributing to sustained speed during solo efforts and pack sprints. A new fork design enhances steering precision, while increased tire clearance supports 32 mm tires for improved grip and control on mixed road conditions.



Key Features

• Frame weight: 685g—Colnago’s lightest to date

• Optimised aerodynamics with 13% smaller frontal area

• Thinner, high-performance tube profiles inspired by Colnago Y1Rs

• Narrower head tube reduces drag and increases airflow efficiency

• Newly designed fork for sharper handling and reduced weight

• Accommodates tires up to 32 mm for versatility across surfaces

• Designed and tested with input from UAE Team Emirates professionals

Technical Specifications

Frame Material: Carbon

Frame Weight: 685 g

Frontal Area: 250 cm²

Fork: New design, lighter with improved steering precision

Tyre Clearance: Up to 32 mm

Use: Road, competitive racing

Aerodynamics: Comparable to top aero-specific frames

Compatibility: Electronic and mechanical groupsets

The lightest and fastest model among the Shimano groupsets, chosen by World Tour professionals

The solution for those seeking good and reliable performance

Specifications

Size 485 unpainted frame: 685g

Weight limit

This model has an overall maximum limit (combined weight of bicycle, rider and load) of 120 kg

Frame kit

Frame (material)

Colnago V5Rs Monocoque carbon frame

Fork (material, section notes)

Carbon fork for disc brakes, integrated cables, Semi-Circular section.

Headset

1"1/8 and 1"1/4 - SLT Treated Bearings

Seatpost

Standard Option

Carbon seatpost, 15mm offset

Sold separately

Carbon seatpost, 0 mm offset

Through axles

Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)

Drivetrain

Shifting system

Shimano Dura Ace R9270 Di2 Disc - 12v

Front derailleur

Shimano Dura Ace FD-R9250

Rear derailleur

Shimano Shadow RD-R9250 12v

Chain

Shimano CN-M9100 12V

Chainrings

Option 1

52-36T

Option 2

50-34T

Cassette

Option 1

11-30T

Option 2

11-34T

Bottom bracket

BSA (English Threaded Bottom Bracket) Shimano

Crank length

Option 1 (Standard for sizes 420 - 485)

170 mm or 165 mm

Option 2 (Standard for sizes 510 - 530)

172.5 mm

Option 3 (Standard for sizes 550 - 570)

175 mm

Brakes

Shimano Dura Ace R9270, 160 mm Front / 140 mm Rear, RT-CL900 rotors

Disc size

160 mm Front/ 140 mm Rear - RT-CL900 rotors

Brake lever

Shimano DURA-ACE ST-R9270

Brake caliper

Standard Flat Mount

Wheels

Option 1

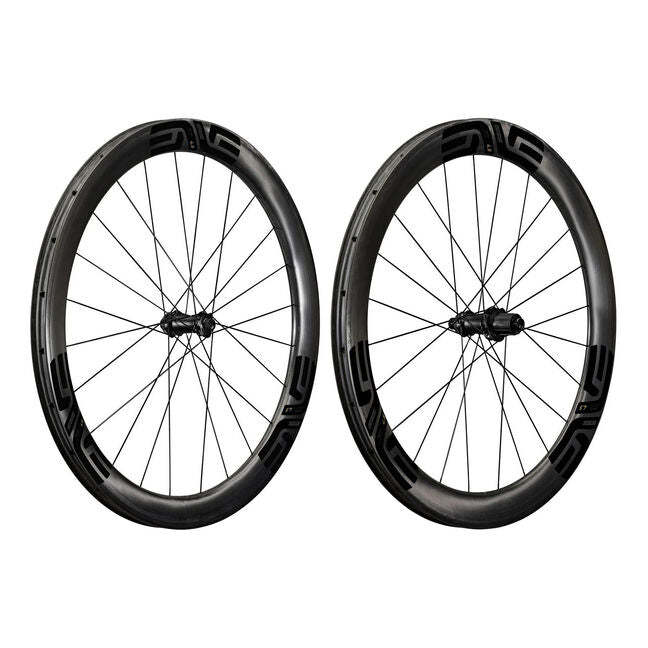

Enve WS SES 4.5

Option 2

Shimano Dura Ace C50 WHR9270

Option 3

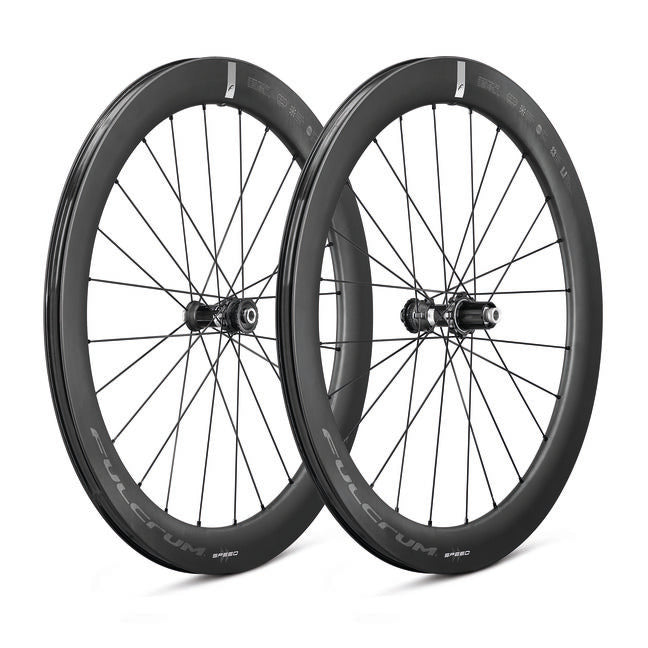

Fulcrum Speed 57 carbon

Geometry Image
Handlebar Image
Handlebar Image
Handlebar Image
Handlebar Image
FIND MY SIZE

Custom Build

Custom Build in Australia and we can modify the specs per your preference please enquire today.

WHEELSET

Enve Ses 4.5 Disc wheelset Pirelli Pzero Race We can change the wheelset to make in dufferent price options

SADDLE

Saddle your choice $350 value

FULL GROUPSET

Shimano Dura Ace di2 12 speed R9270

FRAME

V5RS Carbon

HANDLEBAR

Colnago C.001 or ENVE SES Aero Pro One-Piece
