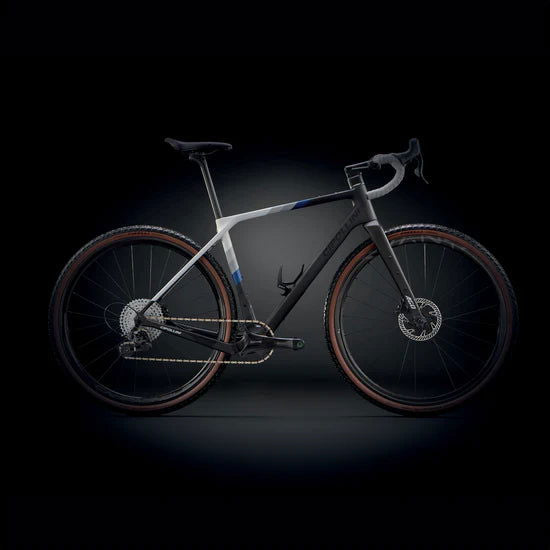

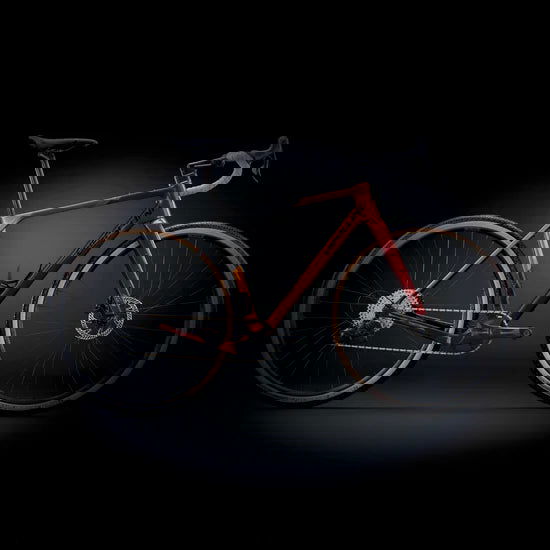

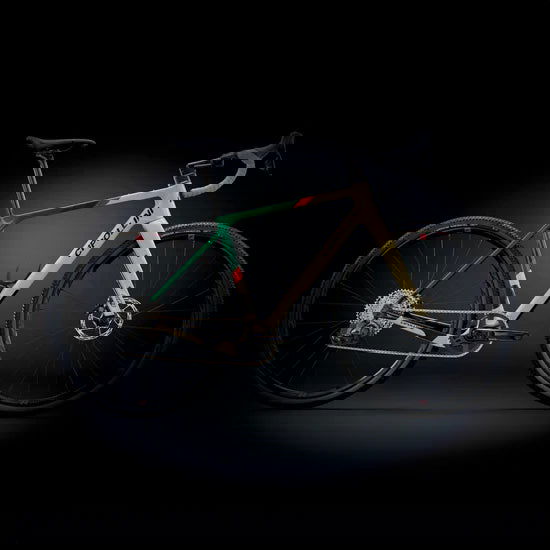

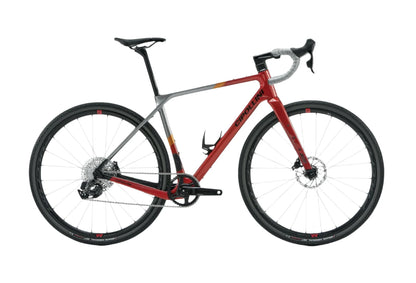

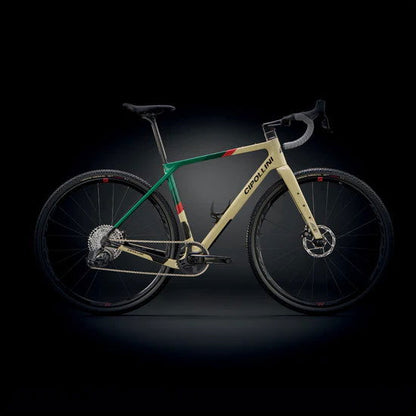

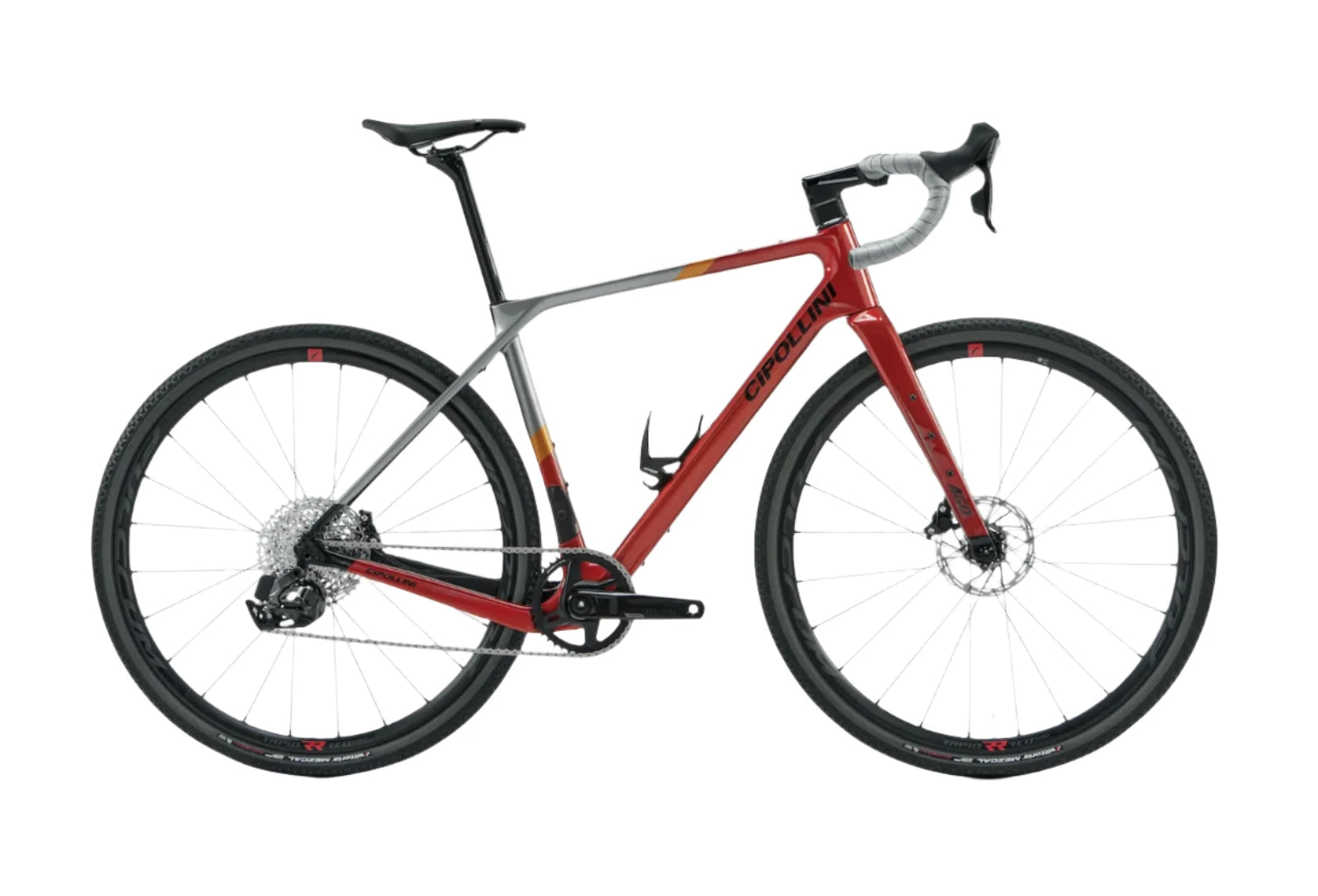

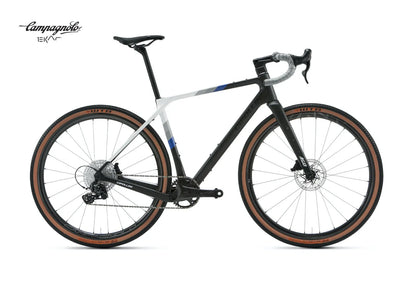

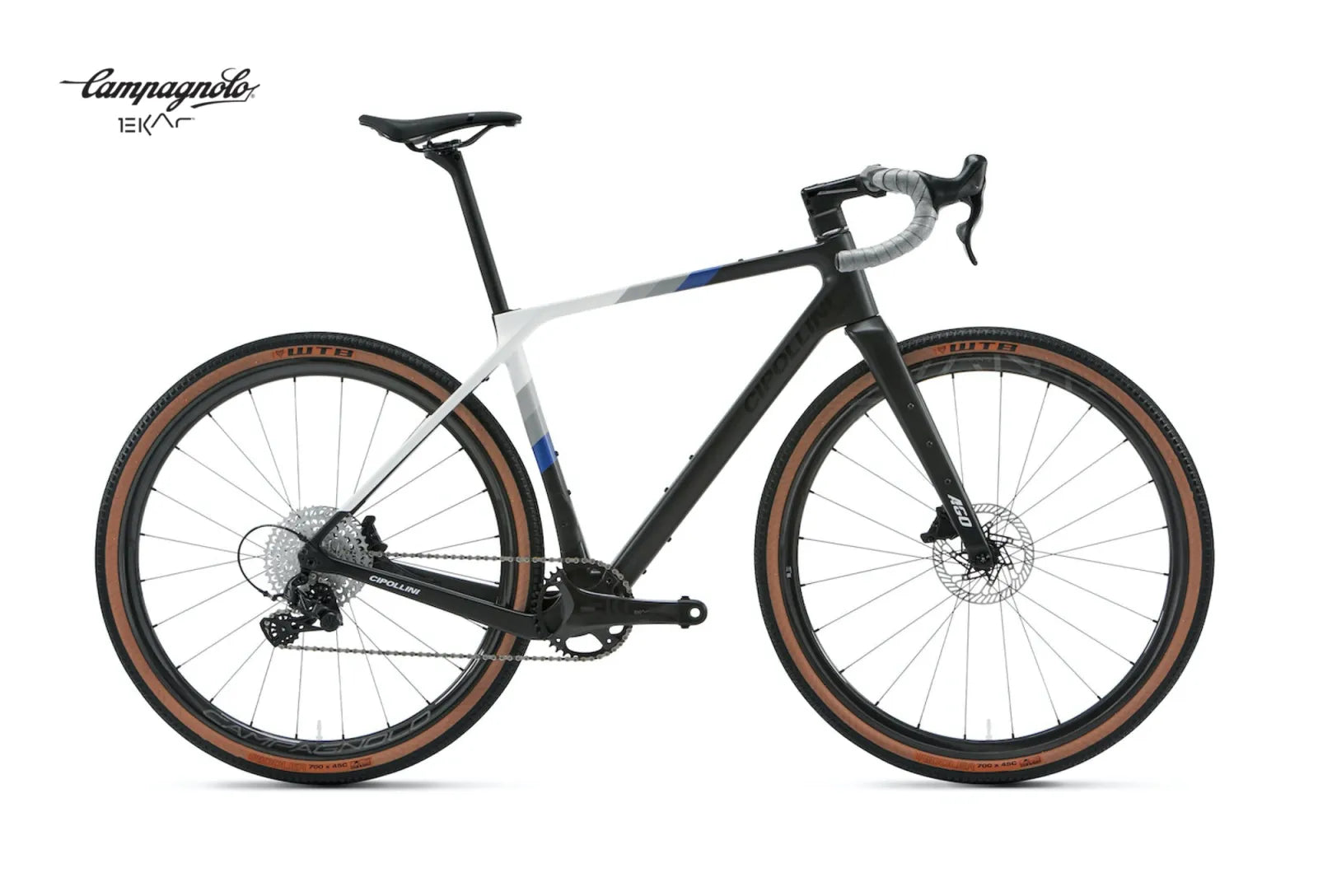

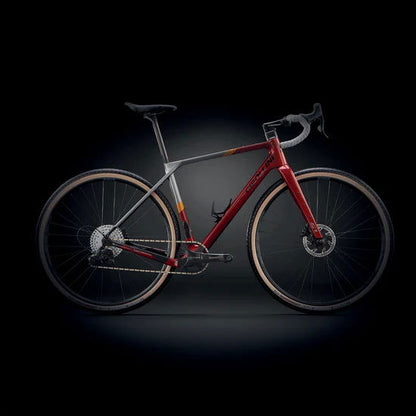

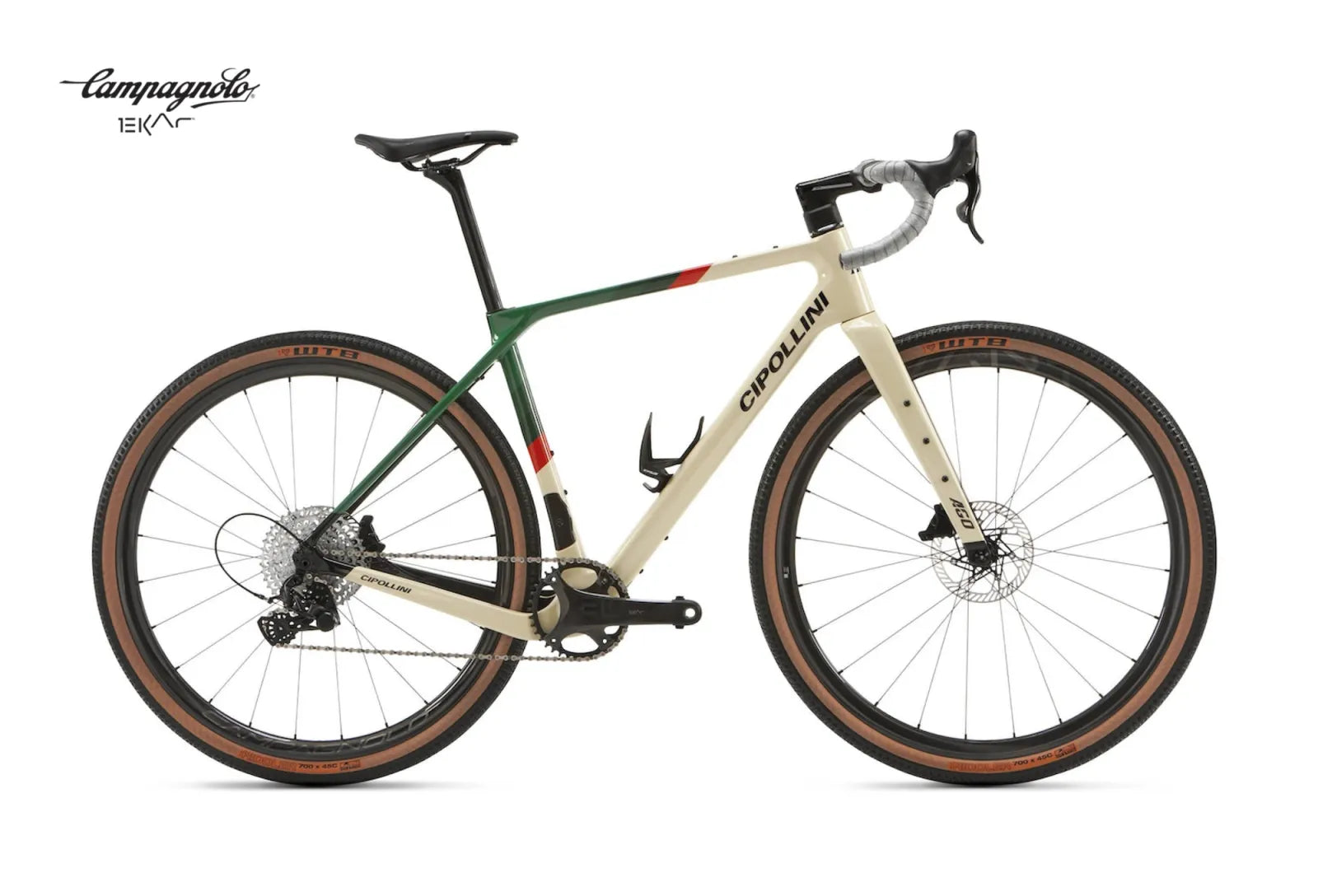

Cipollini Ago - Campagnolo Ekar - Campagnolo Levante wheels

$12,880.00

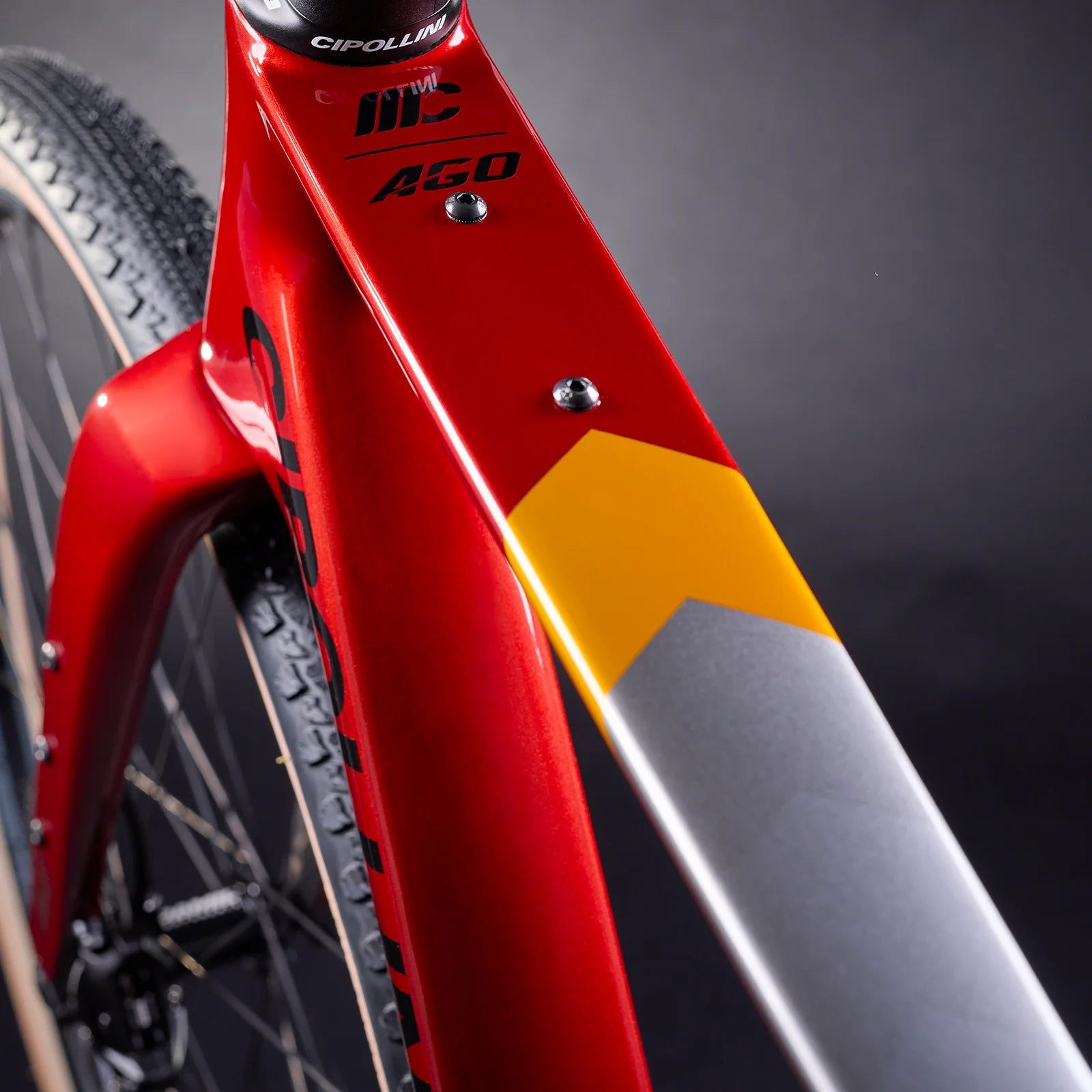

AGO also stands apart for its authentic monocoque frame conceived by TCM technology, which envisages the perfect connection of the triangle on the bottom bracket. But its geometries go well beyond just this:

  • The 700c covers on the frame and fork with actual width up to 45 mm, including the dowel.
  • The sections between the seat post and the bottom bracket ensure that deformations are counteracted during pedalling, while also improving balance and stability on downhill and uneven sections.
  • Seat post positioned 5 mm further forward: a design solution that allows for wide passage of the tyres without lengthening the height of the rear triangle excessively.
  • The 427 mm triangle and frame sections allow you to travel long distances in comfort without losing responsiveness.

It is also possible to complete the setup of the AGO bike with the mudguards (e.g. Alumee 791) and the pannier rack (e.g. Tubus Tara Lowrider and Grand Tour) thanks to the specific optional MCipollini kit.

maximum tyre width: 45 mm (Larghezza misurata)
central movement: PRESSFIT 41 X 86,5 mm
fork weight: 510 g
chassis weight: 930 g
seat post: OFFSET 10 mm 110 g
headset: CONICAL 1.1/2” 1.1/2”
brake system: DISC BRAKE(FLAT MOUNT, THRU AXLE 12 X 142 mm - 12 X 100 mm)
handlebar stem: FSA ST ROAD NS ACR alloy -6° A9 (XS: 70 mm, S: 80 mm, M: 90 mm, L: 100 mm, XL: 110 mm) + FSA HB K-WING AGX(XS: 420 mm, S/M/L: 440 mm, XL: 460 mm)
exchange: Campagnolo EKAR 1x13
chain: Campagnolo EKAR 13s
gripper controls: Campagnolo EP EKAR 1x13 160 mm
covers: Pirelli 45-622 Cinturato Gravel M Classic
derailleur: -
fork: MCipollini Ago
garnish: Campagnolo EKAR 13s 38T(XS/S: 170 mm, M/L: 172,5 mm, XL: 175 mm)
central movement: Campagnolo BB86 PRO-TECH Press-Fit 86,5x41
handlebar tape: Supacaz Super Sticky Kush Gravel - Gunmetal
sprocket set: Campagnolo EKAR 13s 9-42
seatpost: MCipollini Ago
rotors: Campagnolo AFS 160mm
rear wheel: Campagnolo LEVANTE 700C DB 2WF N3W
rear wheel: Campagnolo LEVANTE 700C DB 2WF N3W
saddle: San Marco GROUND SHORT Open-fit Short 155
chassis: MCipollini Ago

Wheels Weight 1485 gr Spokes 24 slim steel circular-section spokes at the front, in a two-cross pattern 24 slim steel circular-section spokes at the back, in a two-cross pattern Hub Black aluminium monolithic hub Cup-and-cone Hub edge: 100 mm in the front, 142 mm in the rear Pivot material: aluminium Cup-and-cone bearing system Tyres Clincher tyres Tubeless tyres Rim Profile height: 30 mm Rim material: carbon Rim cross section (H x W): 30/30.8 mm Internal diameter of rim: 25 mm Lasered graphics Assembly The LEVANTE™ Disc Brake wheel is entirely hand-assembled by a specialised Campagnolo® technician and is 100% checked by electronic instrumentation. This procedure ensures that every single Campagnolo® wheel offers maximum performance and reliability Comes with 50 mm tubeless valve Bushing to reduce the size of the valve hole 2 levers in composite material for tyre removal User manual Accessories bag
Available early 2025. Please contact us for more details.
