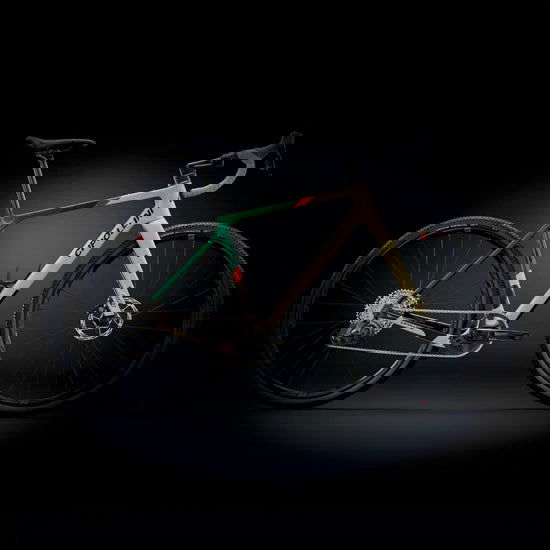

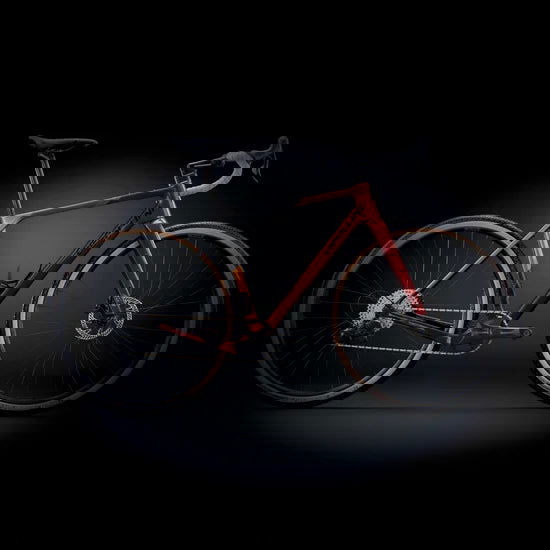

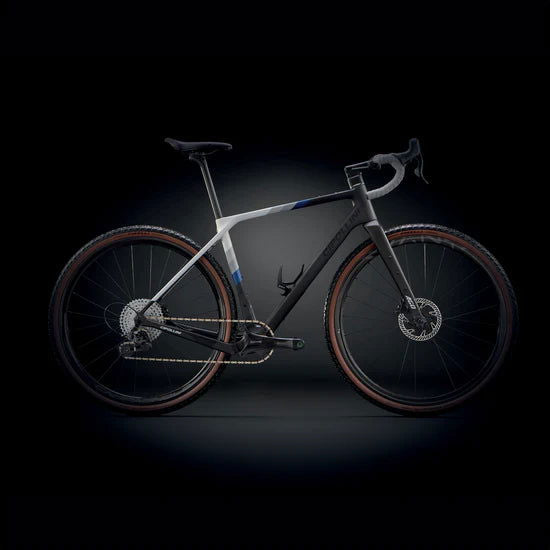

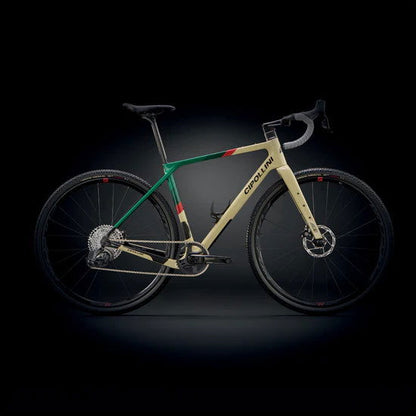

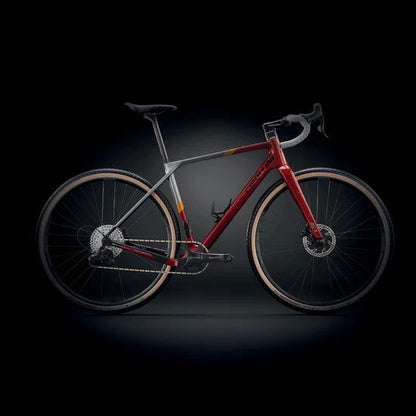

Cipollini Ago - SRAM Rival XPLR E-Tap AXS - Fulcrum Rapid Red 500 wheels

by Cipollini
$10,000.00

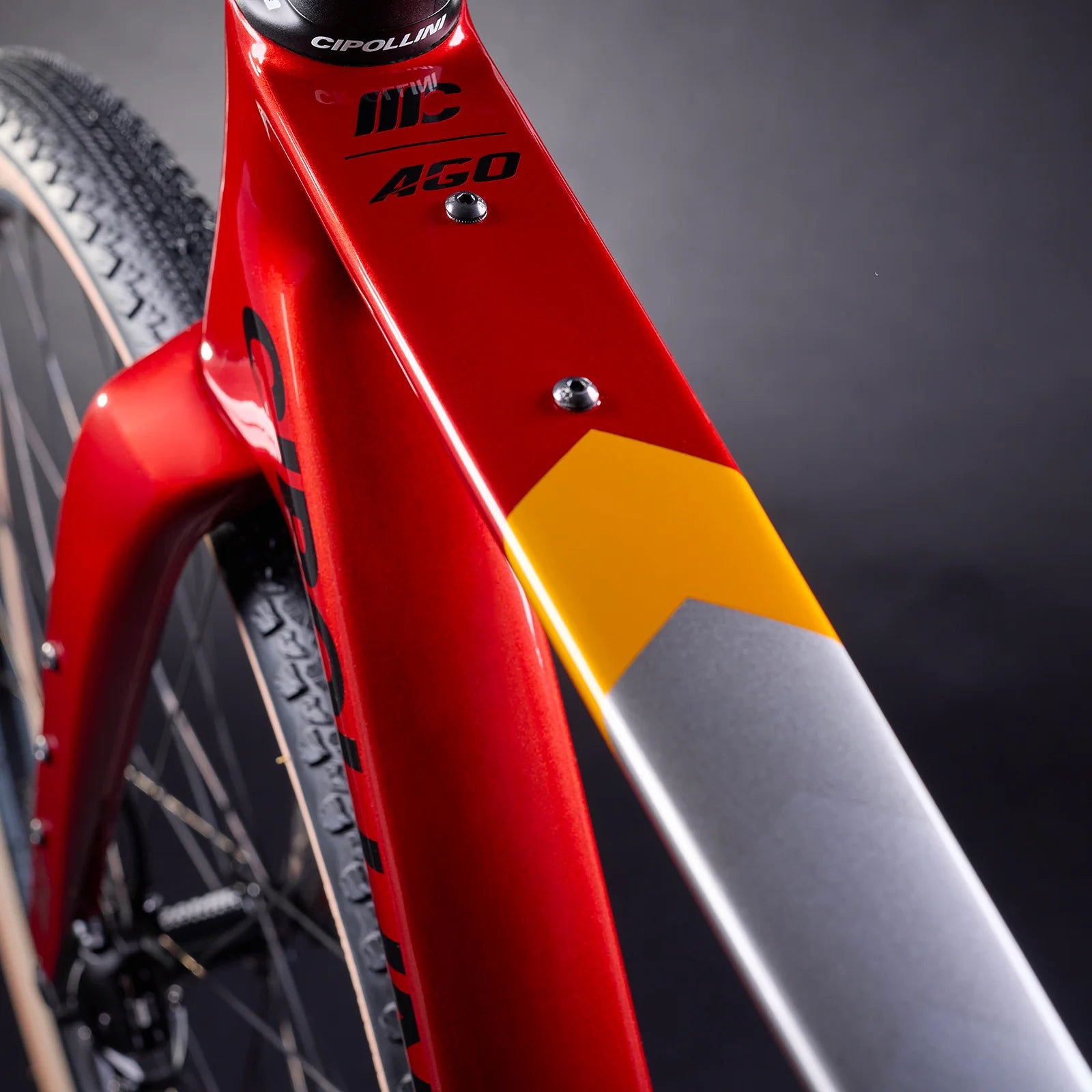

AGO also stands apart for its authentic monocoque frame conceived by TCM technology, which envisages the perfect connection of the triangle on the bottom bracket. But its geometries go well beyond just this:

  • The 700c covers on the frame and fork with actual width up to 45 mm, including the dowel.
  • The sections between the seat post and the bottom bracket ensure that deformations are counteracted during pedalling, while also improving balance and stability on downhill and uneven sections.
  • Seat post positioned 5 mm further forward: a design solution that allows for wide passage of the tyres without lengthening the height of the rear triangle excessively.
  • The 427 mm triangle and frame sections allow you to travel long distances in comfort without losing responsiveness.

It is also possible to complete the setup of the AGO bike with the mudguards (e.g. Alumee 791) and the pannier rack (e.g. Tubus Tara Lowrider and Grand Tour) thanks to the specific optional MCipollini kit.

maximum tyre width: 45 mm (Larghezza misurata)
central movement: PRESSFIT 41 X 86,5 mm
fork weight: 510 g
chassis weight: 930 g
seat post: OFFSET 10 mm 110 g
headset: CONICAL 1.1/2” 1.1/2”
brake system: DISC BRAKE(FLAT MOUNT, THRU AXLE 12 X 142 mm - 12 X 100 mm)
handlebar stem: FSA ST ROAD NS ACR alloy -6° A9 (XS: 70 mm, S: 80 mm, M: 90 mm, L: 100 mm, XL: 110 mm) + FSA HB A-WING Pro AGX alloy(XS: 420 mm, S/M/L: 440 mm, XL: 460 mm)
exchange: SRAM RIVAL XPLR E-TAP AXS D1 44T (10-44)
chain: SRAM PC RIVAL D1 12s
gripper controls: SRAM RIVAL ETAP AXS HRD FM
covers: Vittoria Mezcal III 44-622 Gravel anth-blk-blk G2.0
derailleur: -
fork: MCipollini Ago
garnish: SRAM RIVAL D1 DUB 40T(XS/S: 170 mm, M/L: 172,5 mm, XL: 175 mm)
central movement: SRAM DUB PressFit ROAD WIDE 86,5 mm
handlebar tape: Supacaz Super Sticky Kush Gravel - Gunmetal
sprocket set: SRAM XG-1251 D1 X-Glide 10-44, 12 s
seatpost: MCipollini Ago
rotors: SRAM Paceline Road Centerlock 160 mm
rear wheel: Fulcrum RAPID RED 500 2WF-R C23 AFS
rear wheel: Fulcrum RAPID RED 500 2WF-R C23 AFS
saddle: San Marco GROUND SHORT Open-fit Short 155
chassis: MCipollini Ago

Wheels tyre type: 2-Way fit Ready (for clincher and tubeless ready) tyre size: 28" discipline: B-Road (Gravel) ASTM category: 2 weight: 760 g rim material: Aluminum rim material details: Aluminium profile height: Low rim height: 4 mm rim width: 28 mm inner rim width (channel): 23 mm tyre width: From 32 mm to 46 mm braking system: Disc brake braking surface/brakes options: AFS front axle compatibility: HH15-100/HH12-100 rear axle compatibility: HH12-142 front wheel spokes: 4 rear wheel spokes: 24 spokes: material: Stainless steel spokes: profile: Rounded, straight pull nipples: Aluminum front hub: Aluminum, Aluminum flanges rear hub: Aluminum, Aluminum flanges bearings: Sealed cartridge bearings others: Aluminum Axle Weight limit: 120 kg (comprising cyclist, bike, equipment and luggage)
Available early 2025. Please contact us for more information.

Custom Build

Custom Build in Australia and we can modify the specs per your preference please enquire today.

WHEELSET

Tire Width: 45 mm Rear wheel: Fulcrum RAPID RED 500 2WF-R C23 AFS

SADDLE

San Marco GROUND SHORT Open-fit Short 155

FULL GROUPSET

SRAM RIVAL ETAP AXS

FRAME

MCipollini Ago

HANDLEBAR

CONICAL 1.1/2” 1.1/2” FSA ST ROAD NS ACR alloy -6° A9 (XS: 70 mm, S: 80 mm, M: 90 mm, L: 100 mm, XL: 110 mm) + FSA HB A-WING Pro AGX alloy(XS: 420 mm, S/M/L: 440 mm, XL: 460 mm)
